Hot Dip Galvanized Turnbuckles Jaw & Jaw | 3/4" Thread, 5200lbs WLL
Hot Dip Galvanized Turnbuckles Jaw & Jaw | 3/4" Thread, 5200lbs WLL
SKU:WIR-592be0
High-strength Hot Dip Galvanized Turnbuckles for wire rope applications, 5200lbs WLL
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hot Dip Galvanized Turnbuckles Jaw & Jaw | 3/4" Thread, 5200lbs WLL
$45.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Turnbuckles Jaw & Jaw | 3/4" Thread, 5200lbs WLL
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

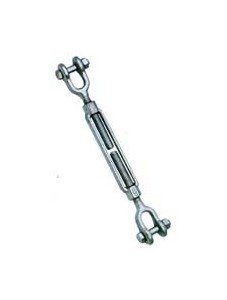

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are designed for exceptional strength and durability. With quenched and tempered end fittings and heat-treated bodies, these turnbuckles are ideal for straight or in-line pulls. Made of high-quality hot dip galvanized steel, they offer superior corrosion resistance, ensuring long-term reliability. These turnbuckles feature UNC threads, making them versatile for various applications in wire rope systems.

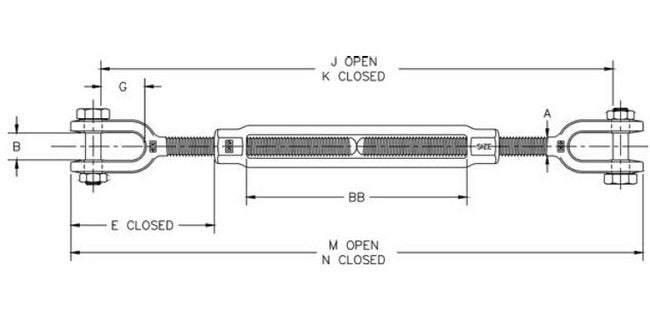

Product Specifications
Specifications A
0.75
Specifications B
0.97
Specifications Bb
9.59
Specifications E Closed
4.68
Specifications G
1.52
Specifications J Open
27.49
Specifications K Closed
18.49
Specifications M Open
30.08
Specifications N Closed
21.08
Specifications Pin Diam
.63 "
Specifications Thread Dia Take Up In
3/4 x 9
Specifications Weight
5.85
Specifications Wll Lbs
5200
