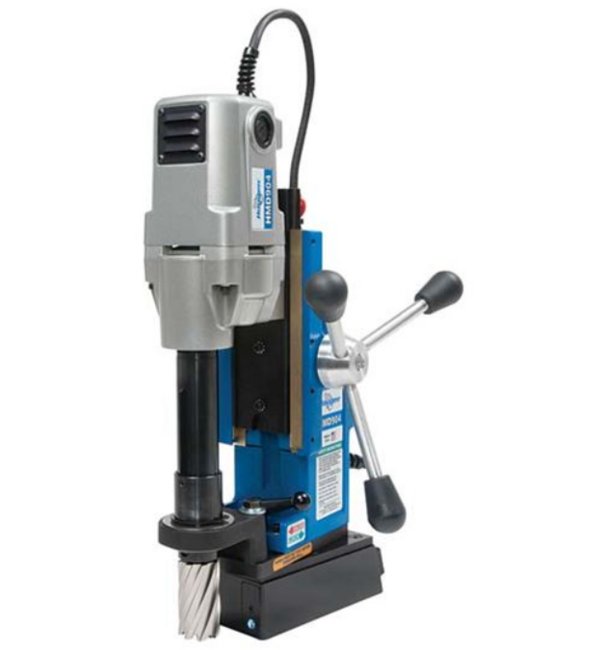

The Hougen HMD904S Swivel Base Magnetic Drill Press is a reliable and powerful drilling solution designed for medium-duty applications. With a motor horsepower of 8 Amps and 450 RPM, this drill press offers a hole capacity ranging from 7/16 to 1-1/2 inches. Its swivel base model allows for versatile drilling angles, and the rear-positioned controls ensure easy access and ergonomic operation. The drill press is equipped with safety features like a switch indicator for operator awareness. Ideal for use with Hougen Rotabroach cutters, this drill press is a cost-effective choice for various drilling needs.
Product Specifications
Applications Applications
Economical drill with medium duty capacities.
Benefits Benefits
Rear positioned controls are easily accessible and ergonomically designed.Safety switch indicator tells the operator when the lift sensor is engaged.
Features Features
Use Hougen Rotabroach cutters.Feed handles can be easily switched to either side.
Technical Specs Application
Uses Rotabroach annular cutters for 1-1/2" x 2" cutting.
Technical Specs Base Dimensions
3-1/8 x 6-9/16 in
Technical Specs Base Length
6-6/16 in
Technical Specs Base Width
3-1/8 in
Technical Specs Brands
Hougen
Technical Specs Cutter Mount
Rotabroach "12,000 Series" / 3/4" Shank
Technical Specs Depth Of Cut
2 in | 50 mm
Technical Specs Electrical System
115 V | 50/60 Hz | 9 A | 1035 W
Technical Specs Height
1 in | 9-5/8 in
Technical Specs Hole Capacity
7/16 to 1-1/2 in | 12 to 38 mm
Technical Specs Length
11-5/8 in
Technical Specs Model
HMD904S
Technical Specs Motor Horse Power Hp
8 A | 450 rpm
Technical Specs No Load Revolution Per Minute Rpm
450 rpm
Technical Specs Shipping Weight
45 lb
Technical Specs Strength
1" Plate: Dead Lift 1750 lbs/ Drillpoint BreakawayBack 995 lbs./ Forward 640 lbs.,3/8" Plate: Dead Lift 1310 lbs/ Drillpoint BreakawayBack 710 lbs./ Forward 485 lbs.
Technical Specs Swiveling Base Length
1-3/8 in
Technical Specs Swiveling Base Width
1-1/8 in
Technical Specs Type
Swivel Base Model #HMD904S Magnetic Drill Press
Technical Specs Voltage
120 V
Technical Specs Weight
31.9 lb
Technical Specs Width
7-3/4 in
