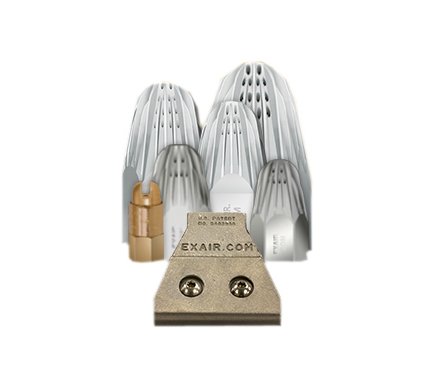

HP1002 High Power Safety Air Nozzle - Brass, 80 psig
HP1002 High Power Safety Air Nozzle - Brass, 80 psig
SKU:HIG-6f0822
Enhance productivity with the HP1002 High Power Safety Air Nozzle - powerful, efficient, and OSHA-compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
HP1002 High Power Safety Air Nozzle - Brass, 80 psig
$79.99
Quantity: 1
Claim Your Seller Account
HP1002 High Power Safety Air Nozzle - Brass, 80 psig
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HP1002 High Power Safety Air Nozzle offers robust blowing force, ideal for applications requiring high thrust and velocity. Crafted from durable brass, this nozzle ensures reliable performance at 80 psig pressure. With optimized air consumption of 32 SCFM, it delivers 1.8 lb force with reduced noise levels of 87 dBA, meeting OSHA noise level requirements. Perfect for Air Assist, Chip Removal, Part Cooling, and more, this compact nozzle improves production efficiency and safety while conserving compressed air and reducing costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
32 SCFM | 906 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
1.8 lb | 792 g
Specifications Inlet
1/4 FNPT
Specifications Material
Brass
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
87 dBA
