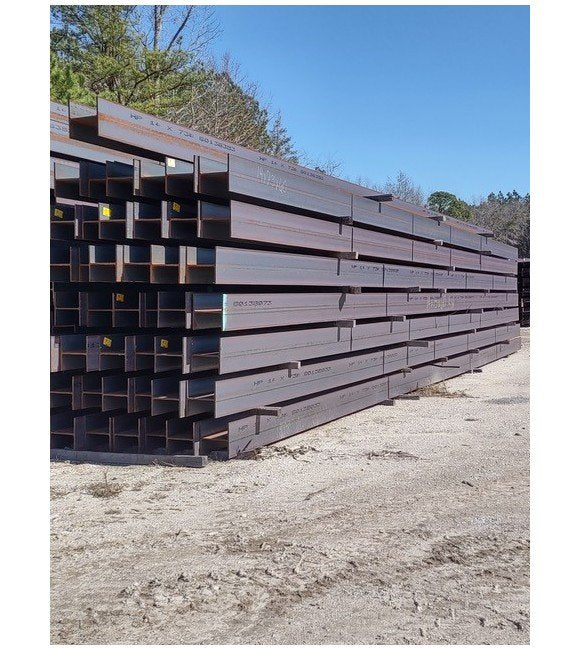

HP16 Steel H Pile Beam
HP16 Steel H Pile Beam
SKU:HPI-7337f1
High-quality HP16 Steel H Pile Beam with ASTM standards. Available in lengths 20-70 ft.
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
per
Initiate Order
HP16 Steel H Pile Beam
$1,200.00
Quantity: 1
Claim Your Seller Account
HP16 Steel H Pile Beam
$1,200.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HP16 Steel H Pile Beam from Delta Steel offers exceptional structural support, with a weight of 88 lb per foot and dimensions including a section depth of 15.30 in, flange width of 15.665 in, flange thickness of 0.540 in, and web thickness of 0.540 in. Available in standard lengths ranging from 20 to 70 ft in 5 ft increments, this beam meets stringent industry standards including ASTM A572-50, ASTM A588, ASTM A709-50, and ASTM A992, ensuring durability and reliability for a wide range of construction applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Flange Thickness C
0.540 in
Specifications Flange Width B
15.665 in
Specifications Increments
5 ft 0 in.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 913-77 | American Society for Testing and Materials (ASTM) A572-50 | American Society for Testing and Materials (ASTM) A588 | American Society for Testing and Materials (ASTM) A709-50 | American Society for Testing and Materials (ASTM) A992
Specifications Section Depth A
15.30 in
Specifications Section Number
HP16
Specifications Standard Length
20 to 70 ft
Specifications Web Thickness D
0.540 in
Specifications Weight Per Foot
88 lb
