HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer
HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer
SKU:NEW-9e2901
High-performance HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer for clean, dry compressed air in industrial applications.
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
per
Initiate Order
HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer
$5,799.99
Quantity: 1
Claim Your Seller Account
HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

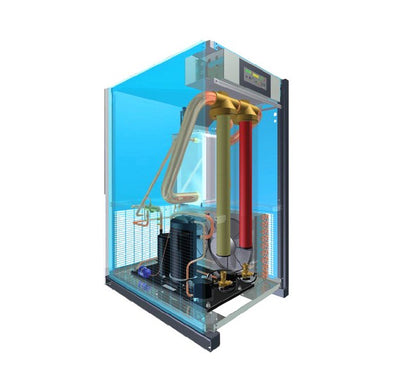

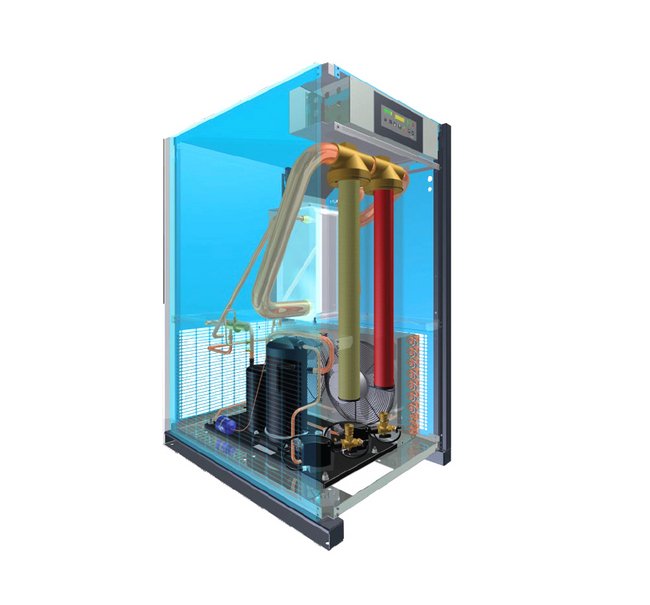

The HPRplus 600 scfm Non-Cycling Refrigerated Air Dryer from Hankison® is a top-tier solution for ensuring clean and dry compressed air supply in industrial settings. With a maximum working pressure of 232 psig, this dryer efficiently removes solid particulates, water vapor, and oil aerosols to meet ISO 8573-1 air quality classes. Equipped with an advanced cabinet design for easy maintenance, corrosion-resistant heat exchangers, and energy-efficient features, this dryer offers exceptional performance and reliability. Compliant with CSA and UL standards, the HPRplus series delivers optimum air quality and system protection for enhanced operational efficiency.
Product Specifications
Iso 85731 Quality Class Performance
The International Organization for Standardization (ISO), the world's most recognized developer and publisher of international standards, identified three critical forms of contamination as common in compressed air systems - Particulate, Water and Oil. ISO Standard 8573-1: 2010 categorizes each contaminant and assigns a quality class, ranging from Class 0, the highest purity level, to Class 9, the most relaxed. This enables end-users of compressed air treatment equipment to select an air quality level meeting the requirements of the application.The HPRp Series effectively removes all three contaminants in a single air treatment system.
Iso 8573 1 2010 Air Quality Classes Air Quality Class
0 | 1 | 2 | 3 | 4 | 5
Iso 8573 1 2010 Air Quality Classes Maximum Number Of Solid Part
As specified by the equipment user or supplier and more stringent than class 1
Iso 8573 1 2010 Air Quality Classes Total Oil Concentration Aero
4 ppm
Iso 8573 1 2010 Air Quality Classes Water Vapor Pressure Dew Poi
≤ +7 ºC | ≤ +45 ºF
Note
Electric demand drain standard [dryer MOP 232 psig (16 bar)]; additional electric demand drain with integral cold coalescing option.
Our Commitment To You Customer Support Solutions
As an extra measure of protection, Hankison® provides an extended warranty beyond the standard 2 year coverage. Purchase a maintenance kit on an annual basis and receive an additional 3 years of protection, parts and labor. All major components are covered. Receive automatic email reminders when it's time to service your product.
Specifications Depth
42 in
Specifications Height
58 in
Specifications Inlet Connection Size
2 1/2 in
Specifications Optional Voltage
575 V
Specifications Outlet Connection Size
2 1/2 in
Specifications Power
3.24 kW
Specifications Standard Voltage At 50 Hz
380 to 420 V
Specifications Standard Voltage At 60 Hz
208 to 230 V | 460 V
Specifications Width
35 in
