HPRplus Series Non-Cycling Refrigerated Air Dryer - 1500 scfm
HPRplus Series Non-Cycling Refrigerated Air Dryer - 1500 scfm
SKU:REF-f325fd
Energy-efficient HPRplus 1500 scfm Air Dryer - ISO quality class compliant
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
HPRplus Series Non-Cycling Refrigerated Air Dryer - 1500 scfm
$6,899.99
Quantity: 1
Claim Your Seller Account
HPRplus Series Non-Cycling Refrigerated Air Dryer - 1500 scfm
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

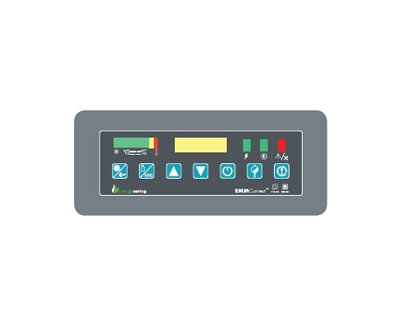

The HPRplus Series Non-Cycling Refrigerated Air Dryer, rated at 1500 scfm, offers unmatched energy efficiency and reliable operation. Designed to meet ISO quality class performance standards, this dryer removes particulates, water, and oil contaminants, ensuring clean, dry compressed air. With a durable cabinet design, corrosion-resistant heat exchangers, and energy-efficient components, this dryer provides optimal protection for compressed air systems. Third-party performance certified and equipped with advanced features like Easy Monitoring and Maintenance Connect, the HPRplus Series delivers exceptional performance for both consumer and institutional buyers.
Product Specifications
Iso 85731 Quality Class Performance
The International Organization for Standardization (ISO), the world's most recognized developer and publisher of international standards, identified three critical forms of contamination as common in compressed air systems - Particulate, Water and Oil. ISO Standard 8573-1: 2010 categorizes each contaminant and assigns a quality class, ranging from Class 0, the highest purity level, to Class 9, the most relaxed. This enables end-users of compressed air treatment equipment to select an air quality level meeting the requirements of the application.The HPRp Series effectively removes all three contaminants in a single air treatment system.
Iso 8573 1 2010 Air Quality Classes Air Quality Class
0 | 1 | 2 | 3 | 4 | 5
Iso 8573 1 2010 Air Quality Classes Maximum Number Of Solid Part
As specified by the equipment user or supplier and more stringent than class 1
Iso 8573 1 2010 Air Quality Classes Total Oil Concentration Aero
4 ppm
Iso 8573 1 2010 Air Quality Classes Water Vapor Pressure Dew Poi
≤ +7 ºC | ≤ +45 ºF
Note
Electric demand drain standard [dryer MOP 232 psig (16 bar)]; additional electric demand drain with integral cold coalescing option.
Our Commitment To You Customer Support Solutions
As an extra measure of protection, Hankison® provides an extended warranty beyond the standard 2 year coverage. Purchase a maintenance kit on an annual basis and receive an additional 3 years of protection, parts and labor. All major components are covered. Receive automatic email reminders when it's time to service your product.
Specifications Depth
51 in
Specifications Height
85 in
Specifications Inlet Connection Size
4 in
Specifications Optional Voltage
208 to 230 V | 575 V
Specifications Outlet Connection Size
4 in
Specifications Power
9.47 kW
Specifications Standard Voltage At 50 Hz
380 to 420 V
Specifications Standard Voltage At 60 Hz
460 V
Specifications Width
49 in
