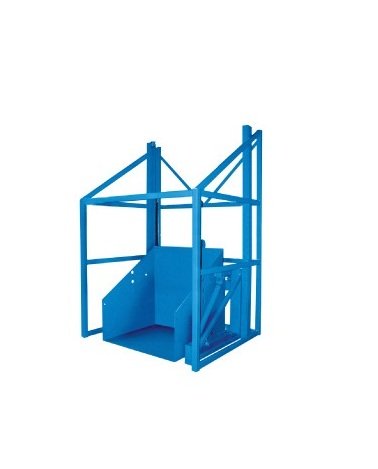

HRDP 2000 lb High Reach Container Dumper
HRDP 2000 lb High Reach Container Dumper
SKU:CON-681f1d
Efficiently lift & dump containers with the HRDP 2000 lb High Reach Dumper by Advance Lifts. Compact, safe, & durable. ISO 9001:2015 & UL certified.
Regular price
$8,799.99
Regular price
Sale price
$8,799.99
Unit price
per
Initiate Order
HRDP 2000 lb High Reach Container Dumper
$8,799.99
Quantity: 1
Claim Your Seller Account
HRDP 2000 lb High Reach Container Dumper
$8,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HRDP Series 2000 lb Capacity High Reach Container Dumper is a versatile solution for lifting and dumping containers to high elevations. With a compact design, this dumper by Advance Lifts ensures safe and efficient lifting and dumping operations. Featuring a 48-inch carriage width and an impressive 146-inch arc height, it is ideal for applications involving high in-feed locations like grinders. Benefit from its full 135-degree tilt capability, machine-grade cylinders, and UL-approved controllers. Made in the USA, this dumper is ISO 9001:2015 and UL certified, offering reliability and durability. Inquire now to streamline your container dumping processes!
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
2400 lb
Specifications Arc Height G
146 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
72 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
