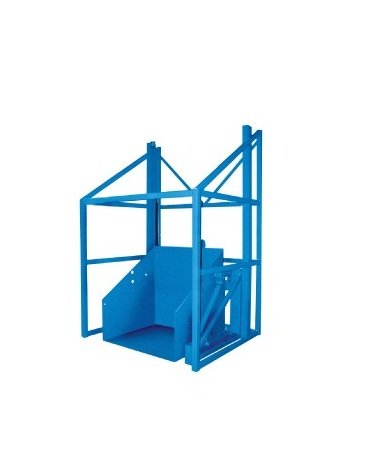

HRDP 4000 lb High Reach Container Dumper
HRDP 4000 lb High Reach Container Dumper
SKU:CON-678093
Efficiently lift and dump containers up to 162 inches high with the HRDP 4000 lb High Reach Container Dumper. Reliable and safe for high-elevation applications.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
HRDP 4000 lb High Reach Container Dumper
$16,999.00
Quantity: 1
Claim Your Seller Account
HRDP 4000 lb High Reach Container Dumper
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HRDP Series 4000 lb High Reach Container Dumper is a robust solution designed for lifting containers to a 162-inch arc height and safely dumping them with precision. With a 48-inch carriage width and a 96-inch dump height, this dumper streamlines operations for applications requiring elevated dumping. It features a 5hp motor, full 135-degree tilt functionality, and meets ISO 9001:2015 and UL standards. Made in the USA, this dumper ensures reliability and efficiency in high-reaching container handling tasks.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
2600 lb
Specifications Arc Height G
162 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
96 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
71 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
44 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
71 in
