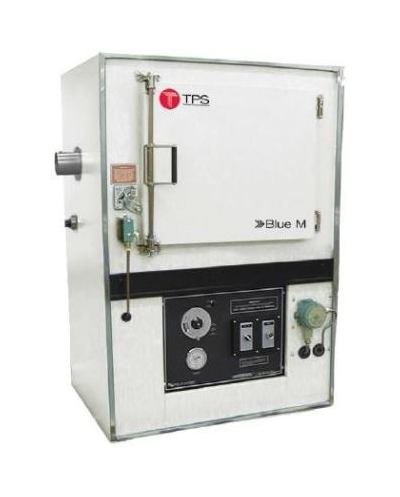

HS-1002 Friction Aire® Safety Oven
HS-1002 Friction Aire® Safety Oven
SKU:BLU-dc6563
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HS-1002 Friction Aire® Safety Oven
$49.99
Quantity: 1
Claim Your Seller Account
HS-1002 Friction Aire® Safety Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Blue M Friction Aire® ovens provide a controlled heat source without heating elements, which eliminates atmospheric explosions and ignitions when working with hazardous Class 1, Group D materials. Class 1 atmospheres contain flammable vapors, and Group D materials include many solvents commonly used in finishing applications, such as lacquers and paints. Underwriter's Laboratories (UL) lists three models of the Friction-Aire family.
Product Specifications
Specifications Ac Voltage
208 V | 240 V | 480 V
Specifications Capacity
1.3 ft³
Specifications Electrical Specification
Voltage - all models: 208/240/480 Volts (V) 3-Phase / 60Hz. AC Chambers will operate satisfactorily on 208 Volts (V) 3-Phase / 60Hz. AC when motor is connected for 240 Volts (V) 3-Phase /60Hz AC
Specifications Features
100% straight-line proportional temperature performance | High-velocity air flow system | Blower-generated heat | No hot spots, no points that exceed the indicated air temperature | Setpoint control | Over-temperature protection system | Temperature-sensitive bellows | By-pass damper vane | Sensing bulb | Fast cool-down
Specifications Frequency
60 Hz
Specifications Industry Standards
Underwriters Laboratory (UL) Listed
Specifications Maximum Average Velocity Adjustable
400 ft/min
Specifications Minimum Average Velocity Adjustable
100 ft/min
Specifications Model Type
Floor Model
Specifications Overall Depth
33 in | 84 mm
Specifications Overall Height
48 in | 120 mm
Specifications Overall Width
37 in | 93 mm
Specifications Rated Power
1 hp
Specifications Shipping Weight
465 lb | 211 kg
Specifications Industrial Safety Oven Operating Characte
Control accuracy: 0.5°C | Cool-down time: (no load) to +50°C: 30 minutes | Drift (over 24-hour period) at +100°C: 0.75°C | Drift (over 24-hour period) at +150°C: 0.50°C | Drift (over 24-hour period) at +50°C: 1.0°C | Run-up Time: (no load) to +150°C: 120 minutes | Temperature range: +20°C above ambient to +150°C (302°F) | Typical air temperature uniformity at +100°C: 0.5°C
Specifications Workspace Depth
17 in | 43 mm
Specifications Workspace Height
12 in | 31 mm
Specifications Workspace Width
14 in | 35 mm
