HS Series Bronze Solenoid Valve
HS Series Bronze Solenoid Valve
SKU:ATK-618510
High-performance HS Series Bronze Solenoid Valve for steam/hot water with superior corrosion resistance and reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
HS Series Bronze Solenoid Valve
$99.99
Quantity: 1
Claim Your Seller Account
HS Series Bronze Solenoid Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HS Series Bronze Solenoid Valve is a high-performance valve suitable for steam or hot water applications in institutional settings. Constructed from durable naval M Bronze, this valve offers a wide operating pressure range of 5 to 125 psig, making it ideal for various industrial needs. With a metal to metal pilot seat and Teflon® seals, this valve ensures reliable performance and longevity. Equipped with a Class H coil and treated 416 stainless steel plunger, it delivers exceptional corrosion resistance. Meeting stringent industry standards, this valve is a reliable choice for institutional procurement.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
3.50

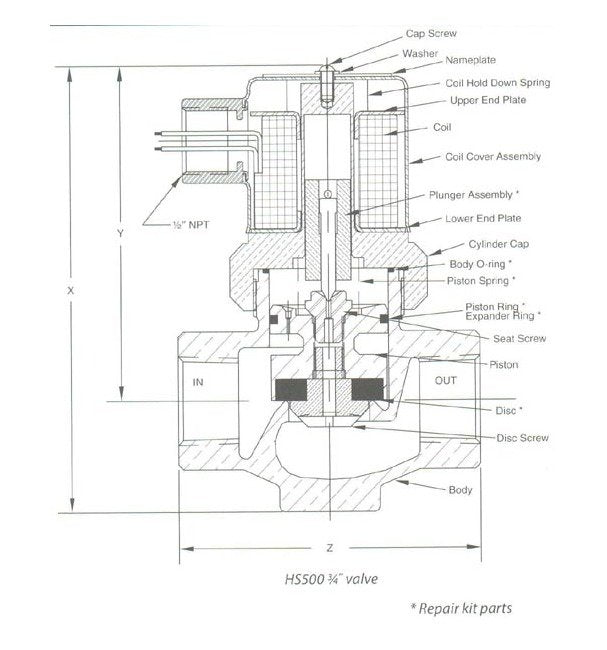

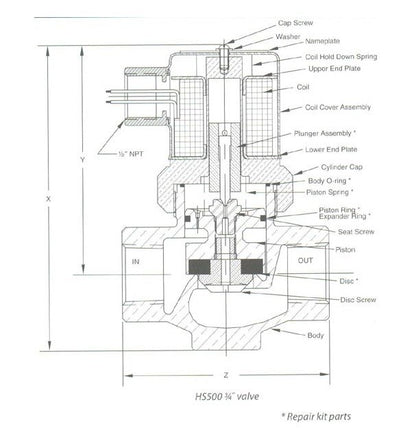

Specifications Dim X
4 3/4 in
Specifications Dim Y
3 7/8 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Steam or Hot Water
Specifications Main Seat Orifice
.5 in

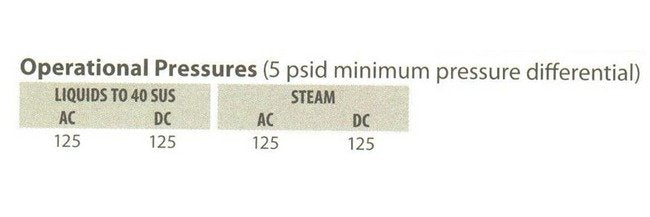

Specifications Operating Pressure
5 to 125 psig | 0.4 to 9 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Series
HS
Specifications Temperature Range
352 ºF | 178 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 - 60 VAC
