HS Series Bronze Solenoid Valve - Steam & Hot Water 1.5in
HS Series Bronze Solenoid Valve - Steam & Hot Water 1.5in
SKU:ATK-0bd3dd
High-performance HS Series Solenoid Valve for steam/hot water control, with bronze body & Class H coil for durability & precision.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
HS Series Bronze Solenoid Valve - Steam & Hot Water 1.5in
$129.99
Quantity: 1
Claim Your Seller Account
HS Series Bronze Solenoid Valve - Steam & Hot Water 1.5in
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HS Series Solenoid Valve is a top-of-the-line solution designed for precise control of steam or hot water flow. Crafted from durable bronze with metal-to-metal and Teflon seals, it ensures reliability in high-pressure environments. With a Cv of 21.0 and a pressure range of 5 to 125 psig, this valve offers exceptional performance. Equipped with a Class H coil and treated stainless steel plunger, it guarantees longevity and corrosion resistance. Ideal for institutional settings requiring stringent standards compliance.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
21.0

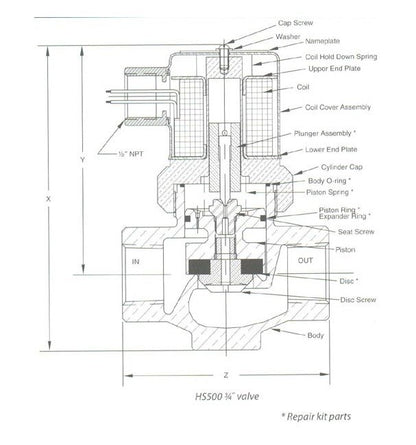

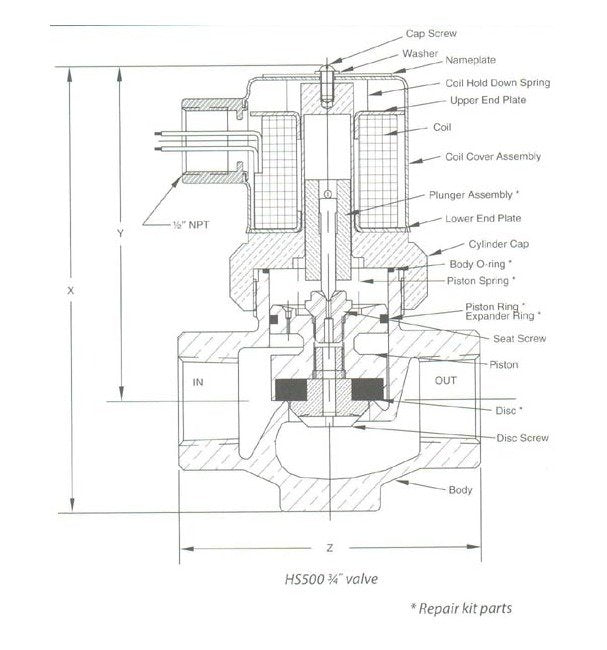

Specifications Dim X
7 in
Specifications Dim Y
5 1/8 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Steam or Hot Water
Specifications Main Seat Orifice
1 1/2 in

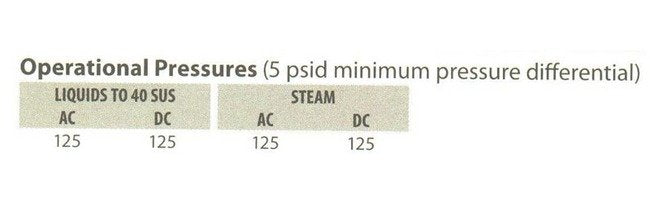

Specifications Operating Pressure
5 to 125 psig | 0.4 to 9 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Series
HS
Specifications Temperature Range
352 ºF | 178 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
230 - 60 VAC
