The HSD Mesur-Fil Fluid Coupling is a high-performance hydro-sheave coupling designed for parallel shaft applications with minimal overhung loads. Easy to install, it features a slotted collet for smaller sizes (7-12.4) and a center locating bolt for larger sizes (15-24). This model includes a basic fluid coupling, input/output group, and requires a customer-supplied QD type sheave. With precision dimensions, NEMA B motor shaft compatibility, and quality construction by Wichita Clutch, it ensures reliable and efficient power transmission.
Product Specifications
Specifications Bore Size
7/8 in
Specifications Casting On Housing
216262 A | 216405 A

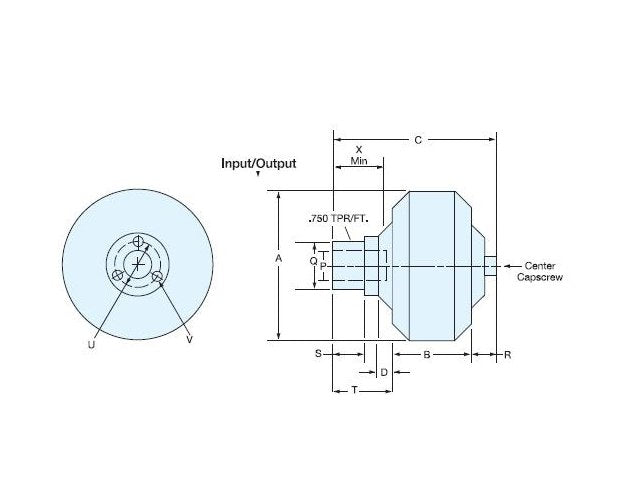

Specifications Dimension A
7.81 in
Specifications Dimension B
3.67 in
Specifications Dimension C
7.05 in
Specifications Dimension D
0.56 in
Specifications Dimension Q
2.149 in
Specifications Dimension R
0.84 in
Specifications Dimension S
1.15 in
Specifications Dimension T
2.54 in
Specifications Dimension U
2.687 in
Specifications Dimension V
1/2-20 in
Specifications Dimension X
2.00 in
Specifications Key
3/16
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
3600 rpm
Specifications Q D Hub Size
SD
Specifications Size
7.0
Specifications Weight Less Oil
12.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
