The HSD Mesur-Fil Fluid Coupling is a reliable solution designed for parallel shaft applications, minimizing overhung loads. Available in different sizes, installation is effortless with slotted collets for smaller sizes and center locating bolts for larger ones. This model consists of a fluid coupling, input/output group, and is compatible with customer-supplied QD type sheaves. With precise dimensions, high-speed tolerance, and a sturdy build, this coupling ensures optimal performance and longevity, meeting stringent industry standards.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

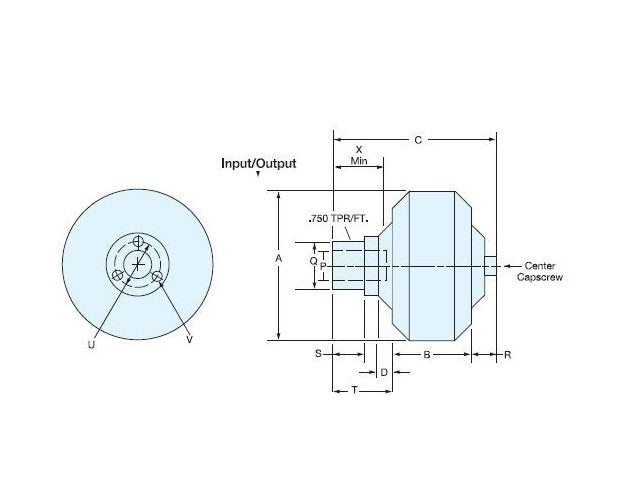

Specifications Bore Size
2-1/8 in
Specifications Casting On Housing
219463 A | 219464 A
Specifications Dimension A
13.50 in
Specifications Dimension B
5.98 in
Specifications Dimension C
12.12 in
Specifications Dimension D
0.82 in
Specifications Dimension Q
3.736 in
Specifications Dimension R
1.24 in
Specifications Dimension S
1.87 in
Specifications Dimension T
4.90 in
Specifications Dimension U
5.000 in
Specifications Dimension V
1/2-13 in
Specifications Dimension X
3.00 in
Specifications Key
1/2
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
1800 rpm
Specifications Q D Hub Size
E
Specifications Size
12.4
Specifications Weight Less Oil
68.00
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
