HT Style PTFE Lined Check Valve - 1.5" NPS, 1.50 PSI Cracking Pressure
HT Style PTFE Lined Check Valve - 1.5" NPS, 1.50 PSI Cracking Pressure
SKU:HTS-2de5d1
Reliable HT Style PTFE Lined Check Valve for superior performance and durability.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
HT Style PTFE Lined Check Valve - 1.5" NPS, 1.50 PSI Cracking Pressure
$189.99
Quantity: 1
Claim Your Seller Account
HT Style PTFE Lined Check Valve - 1.5" NPS, 1.50 PSI Cracking Pressure
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT Style PTFE Lined Check Valve offers exceptional durability and performance. Featuring a one-piece body with ANSI/ASME B16.5 Class 150 flanged ends, this valve is ideal for various applications. The solid Polytetrafluoroethylene (PTFE) liner covers all wetted surfaces, ensuring superior corrosion resistance. With a standard cracking pressure of 1.50 psi and options for different seat and spring materials, this valve delivers reliable operation and longevity. Suitable for low-pressure relief or vacuum breaker applications, it meets stringent quality standards and is made in the USA.
Product Specifications
Additional Information

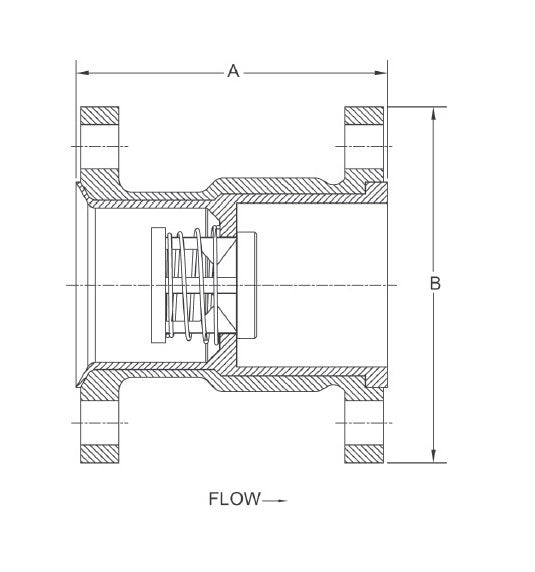

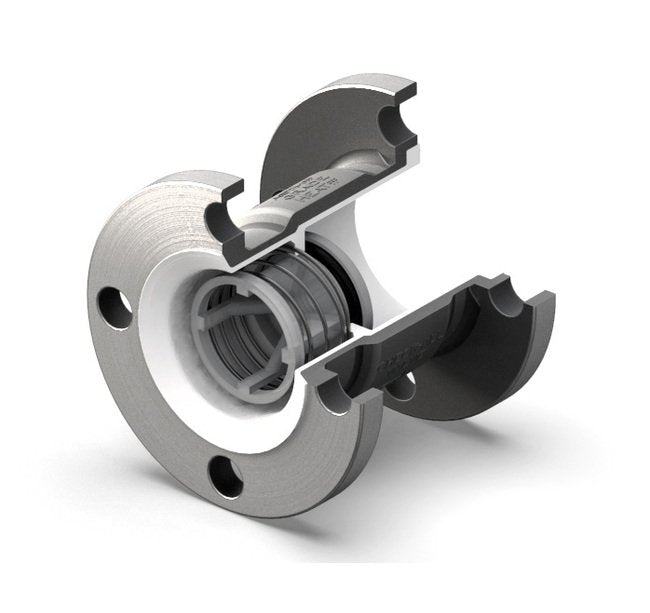

Style HT bodies are made of cast carbon steel only. The liner is made of virgin Polytetrafluoroethylene (PTFE). It is installed as one solid piece of Polytetrafluoroethylene (PTFE) and the internal geometrical shape is machined. The Polytetrafluoroethylene (PTFE) liner has a minimum wall thickness of 3/32 inch, which guarantees against pin holes which can be present in fused liners.The HT valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Check-All® Flanged and Drilled - Fluoropolymer Polytetrafluoroethylene (PTFE) Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece Polytetrafluoroethylene (PTFE) liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (Polytetrafluoroethylene (PTFE)/FEP/PFA) including the FEP encapsulated stainless steel spring.
Note
Made in USA.
Specifications Cast Body Material
Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Liner Material
Polytetrafluoroethylene (PTFE)
Specifications Nominal Pipe Size
1-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
20 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring)
Specifications Size Code
J
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
HT
