HT50 Series Ceramic Capacitors - 200pF, 7.5kV, N3300 Dielectric
HT50 Series Ceramic Capacitors - 200pF, 7.5kV, N3300 Dielectric
SKU:CER-38d288
High-performance HT50 Series Ceramic Capacitors for reliable operation in demanding environments. Ideal for government procurement.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT50 Series Ceramic Capacitors - 200pF, 7.5kV, N3300 Dielectric
$29.99
Quantity: 1
Claim Your Seller Account
HT50 Series Ceramic Capacitors - 200pF, 7.5kV, N3300 Dielectric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT50 Series Ceramic Capacitors offer high performance and reliability for demanding applications. With a capacitance of 200 pF, a maximum DC voltage of 7.5 kV, and a robust N3300 dielectric, these capacitors ensure secure operation in challenging environments. Designed for efficiency and longevity, they provide a frequency range from 0.283 MHz to 3.78 MHz, with a maximum current capacity of 6.9 A. Meeting stringent industry standards, such as Federal/DoD procurement requirements and FAR compliance factors, these capacitors are ideal for government and institutional procurement needs.
Product Specifications
Specifications Cap
200 pF
Specifications Dielectric Tc
N3300
Specifications Fh
3.78 MHz
Specifications Fl
0.283 MHz
Specifications Imax Rms
6.9 A
Specifications Smax
10 kV·A

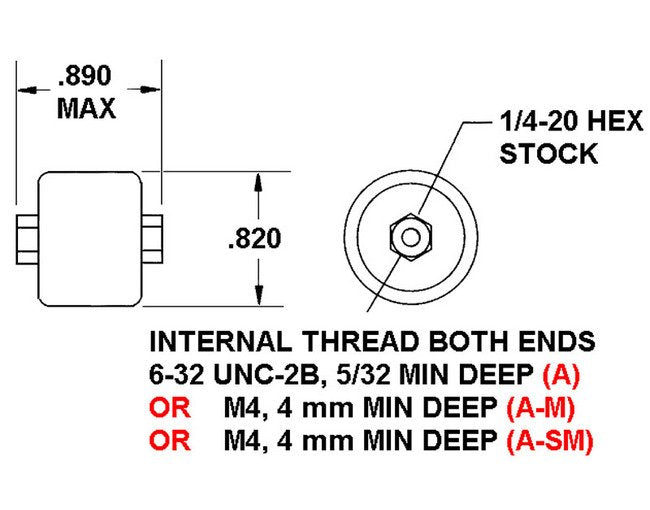

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
