HT50 Series Ceramic Capacitors - 30pF, 7.5kV, NP0 Dielectric
HT50 Series Ceramic Capacitors - 30pF, 7.5kV, NP0 Dielectric
SKU:CER-468847
High-performance HT50 Series Ceramic Capacitors - 30pF, 7.5kV, NP0 Dielectric. Ideal for precision electronics.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT50 Series Ceramic Capacitors - 30pF, 7.5kV, NP0 Dielectric
$29.99
Quantity: 1
Claim Your Seller Account
HT50 Series Ceramic Capacitors - 30pF, 7.5kV, NP0 Dielectric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT50 Series Ceramic Capacitors offer unparalleled performance for institutional and consumer electronics. With a capacitance of 30 pF, NP0 dielectric, and a maximum voltage of 7.5 kV, these capacitors ensure reliable operation across a wide frequency range. Designed to meet stringent industry standards, the HT50 Series is ideal for applications requiring high voltage tolerance and precision capacitance values. Trust in the HT50 Series for exceptional quality and performance in your projects.
Product Specifications
Specifications Cap
30 pF
Specifications Dielectric Tc
NP0
Specifications Fh
33.9 MHz
Specifications Fl
1.88 MHz
Specifications Imax Rms
8.0 A
Specifications Smax
10 kV·A

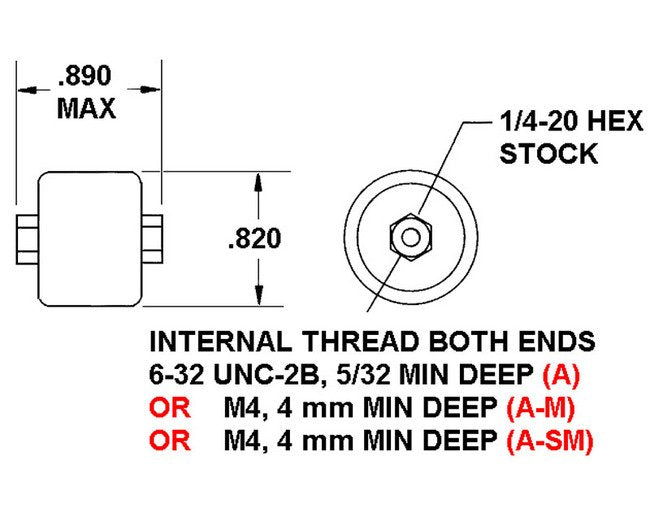

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
