HT50 Series High Voltage Ceramic Capacitors
HT50 Series High Voltage Ceramic Capacitors
SKU:CER-16d4fd
High-performing HT50 Series Ceramic Capacitors with 700 pF capacitance, 7.5 kV DC voltage rating, and 1.42 MHz frequency range. Ideal for demanding applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
HT50 Series High Voltage Ceramic Capacitors
$24.99
Quantity: 1
Claim Your Seller Account
HT50 Series High Voltage Ceramic Capacitors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT50 Series Ceramic Capacitors are precision-engineered for high-performance applications, featuring a capacitance of 700 pF and a maximum DC voltage rating of 7.5 kV. With a frequency range from 0.0808 MHz to 1.42 MHz, and a maximum current of 7.9 A RMS, these capacitors ensure reliable operation in demanding environments. Threaded for secure installations with 6-32 UNC-2B sizing, these capacitors meet stringent industry standards for quality and performance.
Product Specifications
Specifications Cap
700 pF
Specifications Dielectric Tc
N5250
Specifications Fh
1.42 MHz
Specifications Fl
0.0808 MHz
Specifications Imax Rms
7.9 A
Specifications Smax
10 kV·A

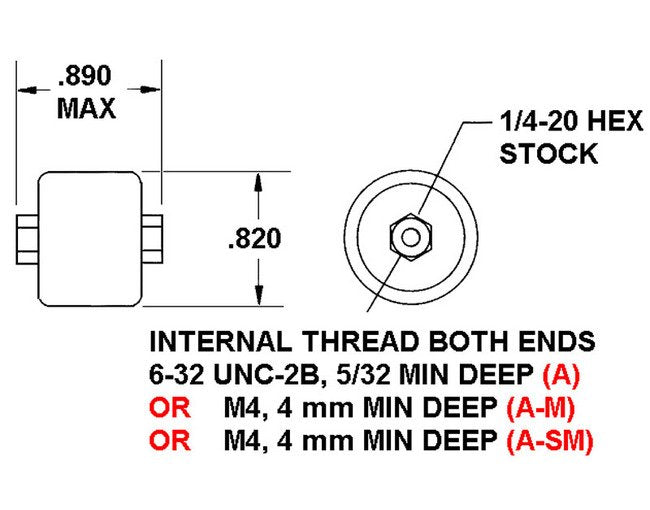

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
