HT53 Series 7 kVA Ceramic Capacitors
HT53 Series 7 kVA Ceramic Capacitors
SKU:CER-59e1c3
High-performance ceramic capacitors for high-voltage systems, offering 7 kVA max power and Class I NP0 or N750 TC variants.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT53 Series 7 kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT53 Series 7 kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

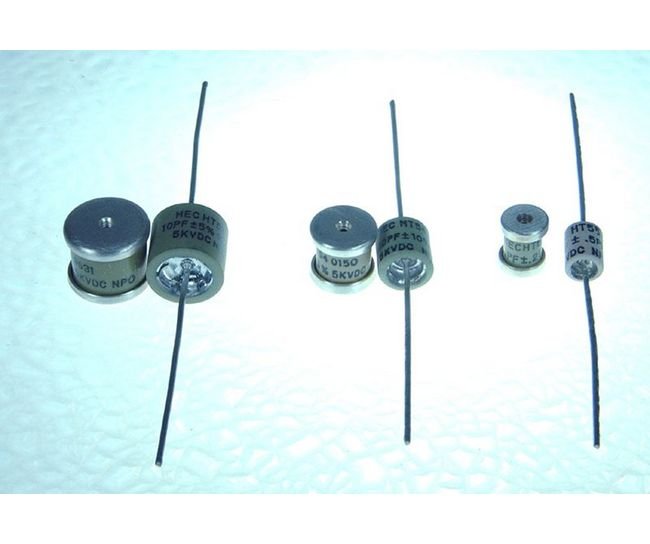

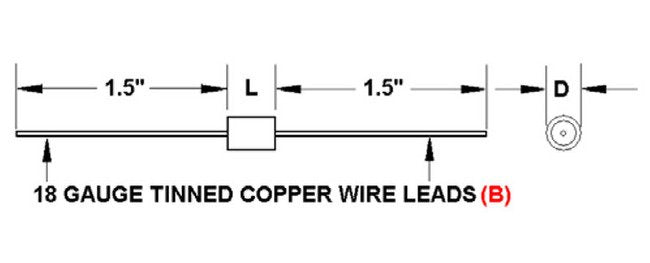

The HT53 Series 7 kVA Ceramic Capacitors offer unparalleled performance in electrical systems requiring high voltage and power capacities. With a working voltage of 5 kVDC, maximum power rating of 7 kVA, and capacitance ranging from 1 to 40 pF, these capacitors provide stability and reliability. Available with threaded terminals or wire leads, and in Class I NP0 or N750 TC variants, these capacitors are designed for precision and durability in a wide range of applications. Trust the HT53 Series for exceptional performance and longevity in your electrical projects while meeting stringent industry standards.
Product Specifications
Specifications Cap
10 pF
Specifications Dielectric Tc
NP0
Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
36.3 MHz
Specifications Fl
8.91 MHz
Specifications Imax Rms
4.0 A
Specifications Smax
7 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
