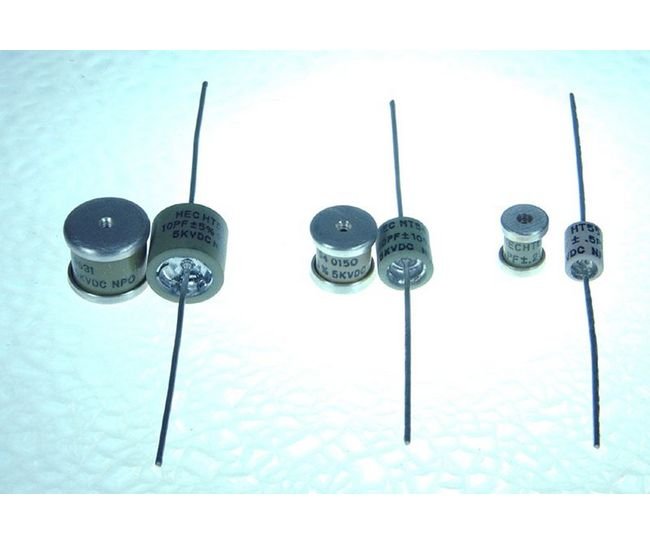

HT53 Series 7 kVA Ceramic Capacitors
HT53 Series 7 kVA Ceramic Capacitors
SKU:CER-f95f89
High-performance HT53 Series 7 kVA Ceramic Capacitors with 5 kVDC, N750 dielectric, and 35 pF capacitance. Ideal for industrial and government applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT53 Series 7 kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT53 Series 7 kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

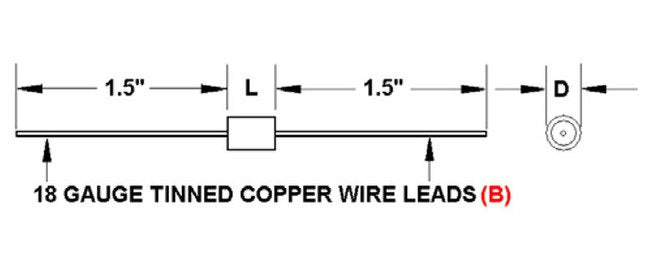

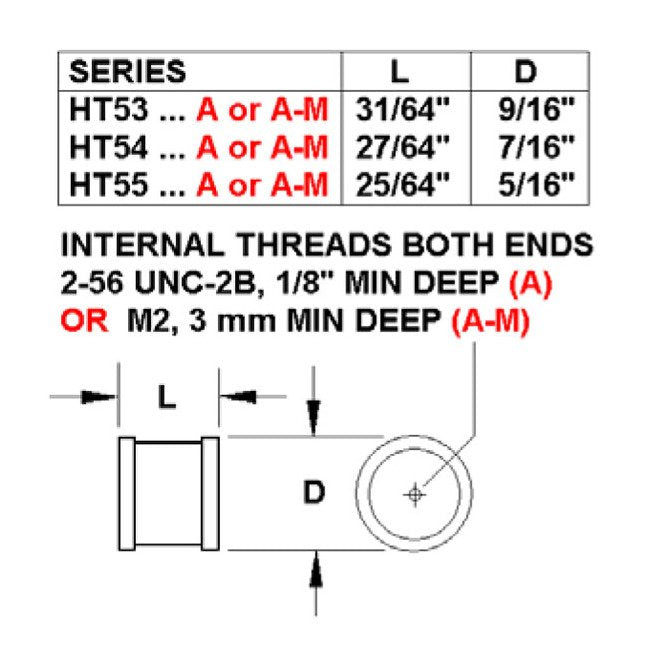

The HT53 Series 7 kVA Ceramic Capacitors are designed for high-performance applications with a 5 kVDC working voltage and 35 pF capacitance. These capacitors feature N750 dielectric, offering excellent stability and reliability. With threaded terminals or wire leads, Class I NP0 or N750 TC's, and a compact design (7/16 in L x 1/2 in D), they ensure efficient power transmission and signal integrity. Ideal for industrial and government projects, these capacitors provide a wide frequency range (2.54 MHz to 16.9 MHz) and a maximum power rating of 7 kV·A, meeting stringent standards for performance and durability.
Product Specifications
Specifications Cap
35 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
16.9 MHz
Specifications Fl
2.54 MHz
Specifications Imax Rms
5.1 A
Specifications Smax
7 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
