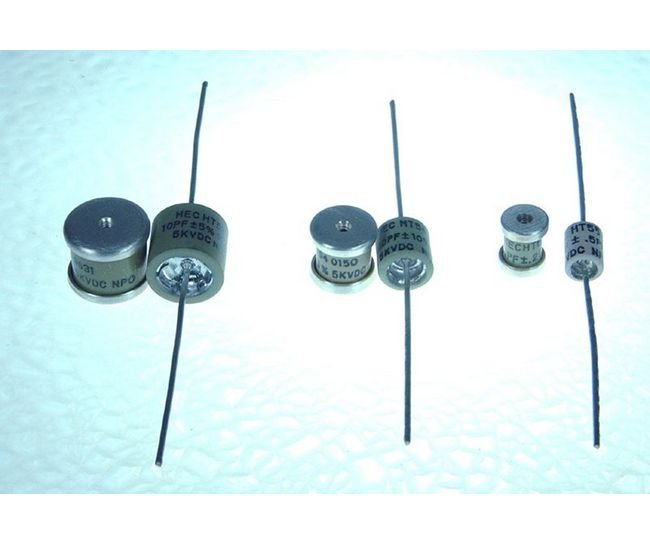

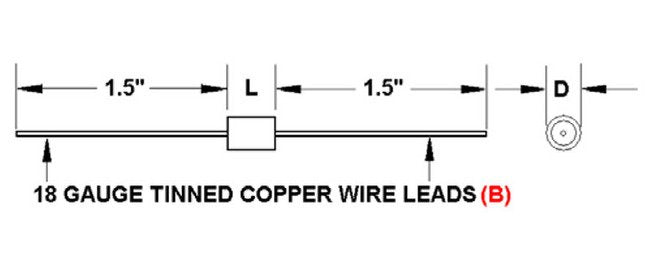

The HT53 Series Ceramic Capacitors, with a working voltage of 5 kVDC and maximum power of 7 kVA, are ideal for high-performance applications. These capacitors offer a capacitance range of 1 to 40 pF, utilizing Threaded Terminals or Wire Leads for convenient installation. Designed with Class I NP0 or N750 TC's, they ensure stable and reliable performance in diverse electrical environments, catering to the stringent requirements of institutional buyers seeking precision and durability.
Product Specifications
Specifications Cap
25 pF
Specifications Dielectric Tc
NP0
Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
20.9 MHz
Specifications Fl
3.56 MHz
Specifications Imax Rms
4.8 A
Specifications Smax
7 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
