HT53 Series 7 kVA Max Power Ceramic Capacitors - 5 kVDC
HT53 Series 7 kVA Max Power Ceramic Capacitors - 5 kVDC
SKU:CER-468444
High-performance 5 kVDC Ceramic Capacitors - Ideal for precise applications. Maximize power with 7 kVA capacity. Threaded terminals or wire leads. N750 dielectric, 30 pF capacitance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT53 Series 7 kVA Max Power Ceramic Capacitors - 5 kVDC
$29.99
Quantity: 1
Claim Your Seller Account
HT53 Series 7 kVA Max Power Ceramic Capacitors - 5 kVDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT53 Series Ceramic Capacitors offer a robust solution with a working voltage of 5 kVDC and a maximum power rating of 7 kVA. Featuring a capacitance of 30 pF, N750 dielectric material, and threaded terminals or wire leads, these capacitors are designed for precision applications. With Class I NP0 or N750 temperature characteristics, these capacitors ensure stable performance across a broad frequency range. Trusted for their reliability and efficiency, the HT53 Series capacitors meet stringent industry standards for institutional and government procurement.
Product Specifications
Specifications Cap
30 pF
Specifications Dielectric Tc
N750

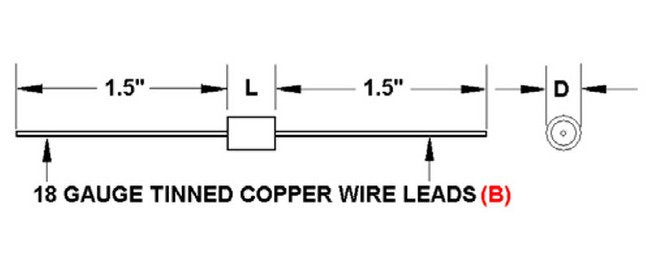

Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
18.9 MHz
Specifications Fl
2.97 MHz
Specifications Imax Rms
5.0 A
Specifications Smax
7 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
