HT53 Series 7kVA Ceramic Capacitors
HT53 Series 7kVA Ceramic Capacitors
SKU:CER-f6315b
High-performance HT53 Series 7kVA Ceramic Capacitors with 5 kVDC, 7 kV·A max power, and Class I NP0 or N750 TC for reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
HT53 Series 7kVA Ceramic Capacitors
$24.99
Quantity: 1
Claim Your Seller Account
HT53 Series 7kVA Ceramic Capacitors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

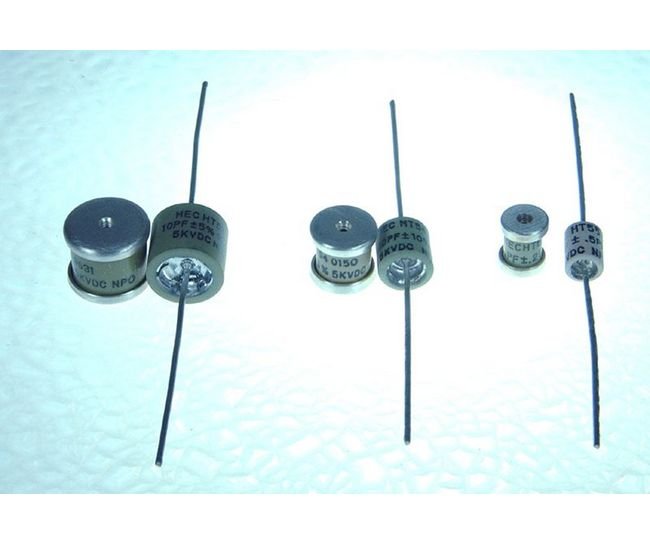

The HT53 Series 7kVA Ceramic Capacitors are designed for high-performance applications requiring a 5 kVDC working voltage and 7 kV·A max power. With 1 to 40 pF capacitance and a choice of threaded terminals or wire leads, these Class I NP0 or N750 TC capacitors offer superior reliability and consistency. Ideal for demanding environments, these capacitors deliver precise capacitance values and high frequency stability, meeting stringent industry standards for quality and performance.
Product Specifications
Specifications Cap
7 pF
Specifications Dielectric Tc
NP0

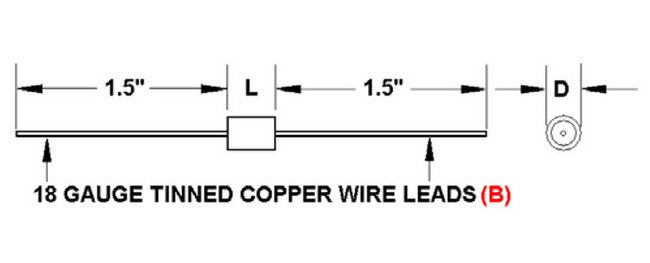

Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
46.8 MHz
Specifications Fl
12.7 MHz
Specifications Imax Rms
3.8 A
Specifications Smax
7 kV·A

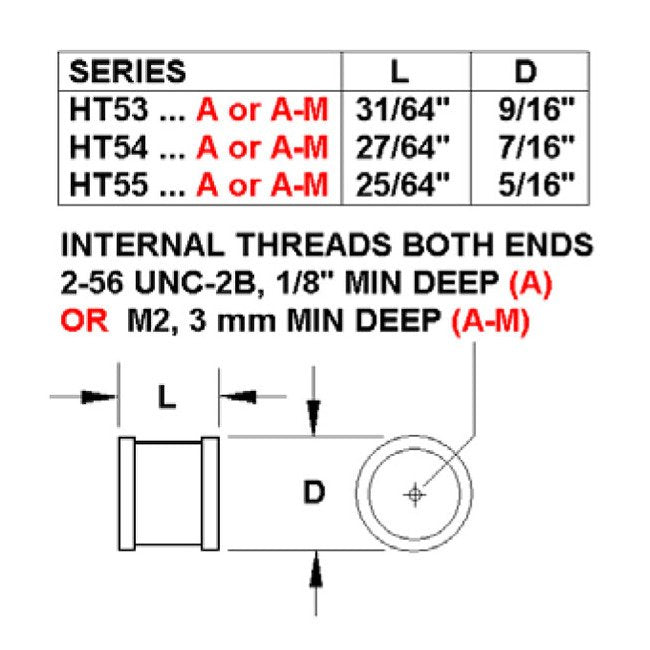

Specifications Thread
#18
Specifications Vmax Dc
5 kV
