HT53 Series 7kVA Ceramic Capacitors with 5kVDC Voltage
HT53 Series 7kVA Ceramic Capacitors with 5kVDC Voltage
SKU:CER-774bfc
High-performing 7kVA Ceramic Capacitors with 5kVDC voltage, 45pF capacitance, and N750 dielectric for reliable power operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT53 Series 7kVA Ceramic Capacitors with 5kVDC Voltage
$29.99
Quantity: 1
Claim Your Seller Account
HT53 Series 7kVA Ceramic Capacitors with 5kVDC Voltage
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

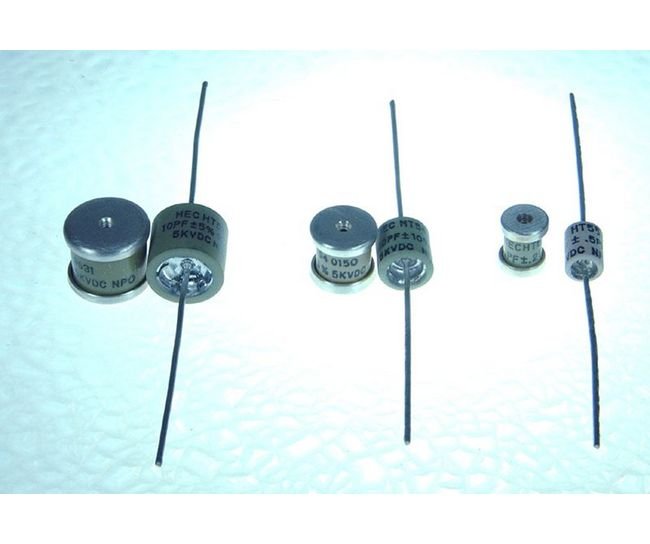

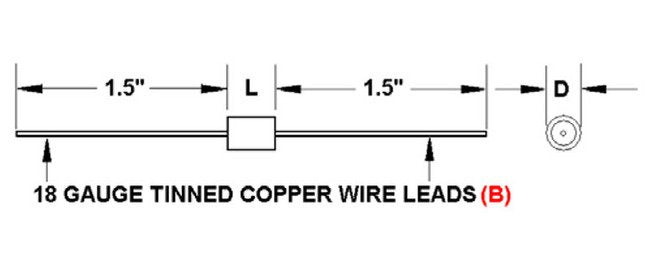

Meet your power needs with the high-performance HT53 Series 7kVA Ceramic Capacitors. Featuring a 45pF capacitance, N750 dielectric, and a maximum power of 7kVA, these capacitors offer reliable operation at voltages up to 5kVDC. Choose between threaded terminals or wire leads for installation flexibility. With Class I NP0 or N750 TC, these capacitors ensure stability and precision in demanding applications.
Product Specifications
Specifications Cap
45 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
1/2 in
Specifications Dimension L
7/16 in
Specifications Fh
14.2 MHz
Specifications Fl
1.98 MHz
Specifications Imax Rms
5.3 A
Specifications Smax
7 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
