HT53 Series Ceramic Capacitors - High Voltage 7 kVA Power

Name: HT53 Series Ceramic Capacitors - High Voltage 7 kVA Power
Brand: High Energy Corp.
SKU: CER-1d97ec
Price: 29.99 USD
Availability: OutOfStock

SKU:CER-1d97ec

High-voltage ceramic capacitors with 5 kVDC, 7 kVA power, and a capacitance range of 1-40 pF. Designed for stability and longevity in demanding applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

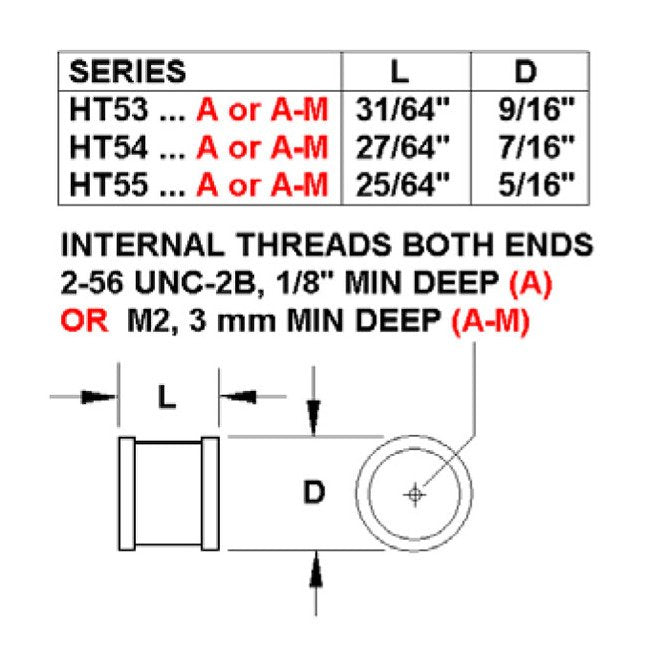

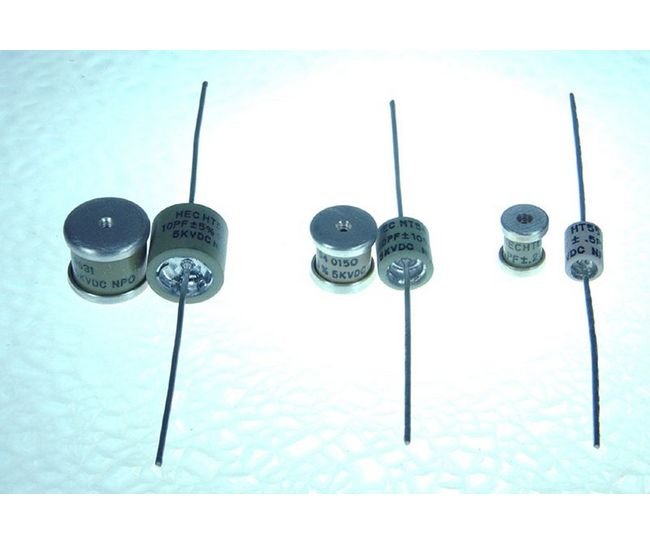

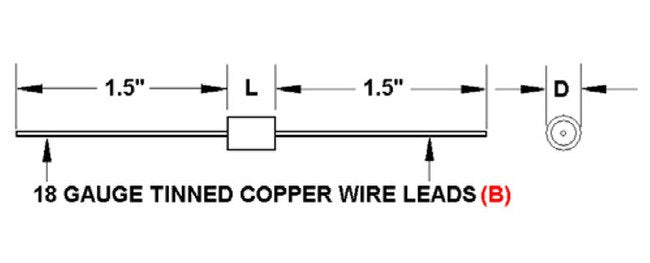

The HT53 Series Ceramic Capacitors are engineered for superior performance in high-voltage applications, with a working voltage of 5 kVDC and a maximum power capacity of 7 kVA. These capacitors feature a capacitance range of 1 to 40 pF, available with threaded terminals or wire leads for flexible installation. Built to precision, they utilize Class I NP0 or N750 TC's, ensuring stable operation across a broad frequency range from 4.45 MHz to 23.0 MHz. The compact design, with dimensions of 7/16 in (L) and 1/2 in (D), combined with a durable #18 thread, makes them ideal for demanding environments where reliability is paramount.

Product Specifications

Specifications Cap

20 pF

Specifications Dielectric Tc

NP0

Specifications Dimension D

1/2 in

Specifications Dimension L

7/16 in

Specifications Fh

23.0 MHz

Specifications Fl

4.45 MHz

Specifications Imax Rms

4.5 A

Specifications Smax

7 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV
