HT54 Series 5 kVA Ceramic Capacitors
HT54 Series 5 kVA Ceramic Capacitors
SKU:CER-768ad9
High-performance ceramic capacitors with 5 kVDC working voltage and 5 kVA max power. Ideal for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT54 Series 5 kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT54 Series 5 kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

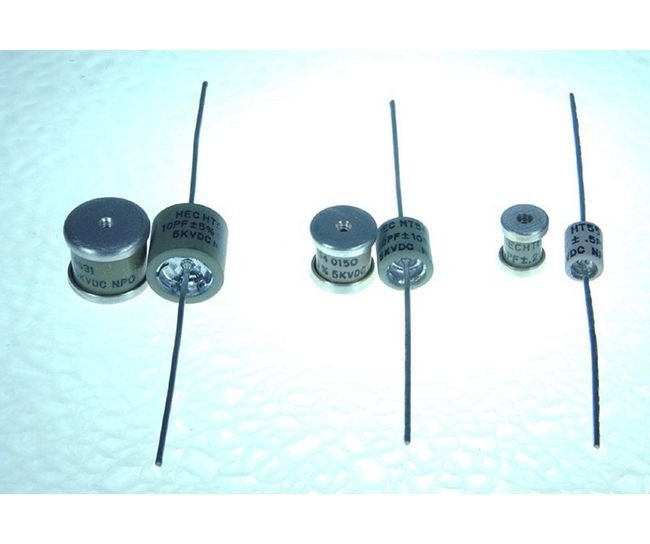

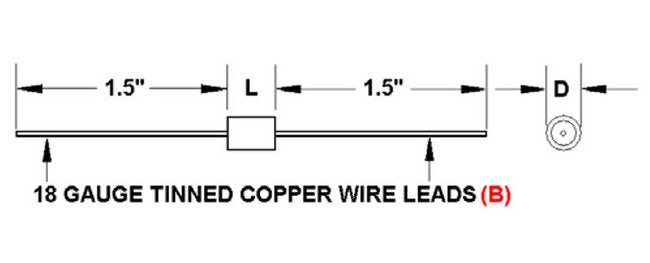

The HT54 Series Ceramic Capacitors are designed for high-performance applications requiring a working voltage of 5 kVDC and a maximum power of 5 kVA. These capacitors offer a capacitance range from 1 to 40 pF, with options for threaded terminals or wire leads. Featuring Class I NP0 or N750 temperature coefficients, these capacitors ensure stable performance across a wide frequency range. With dimensions of 3/8 in (L) and 3/8 in (D), they are ideal for compact installations. Trust the HT54 Series for reliable, high-capacitance solutions in demanding environments.
Product Specifications
Specifications Cap
5 pF
Specifications Dielectric Tc
NP0

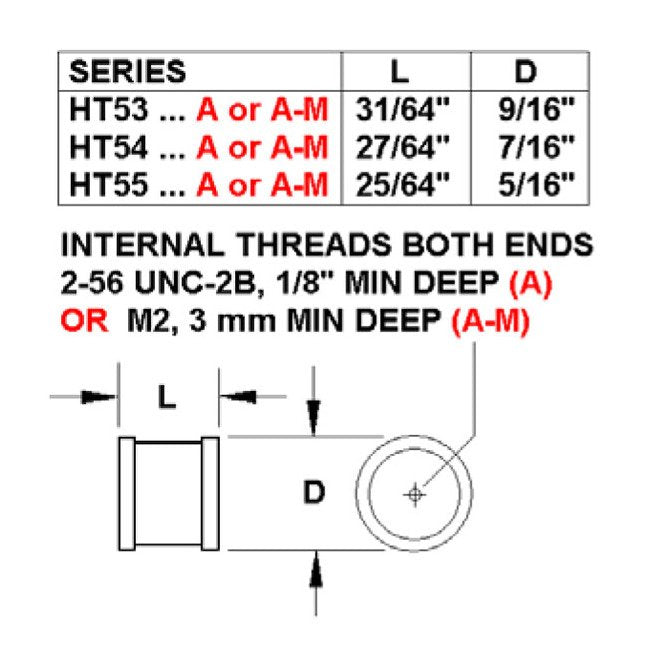

Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
30.8 MHz
Specifications Fl
12.7 MHz
Specifications Imax Rms
2.2 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
