HT54 Series 5 kVA Ceramic Capacitors
HT54 Series 5 kVA Ceramic Capacitors
SKU:CER-e284e0
High-performance HT54 Series 5 kVA Ceramic Capacitors for demanding applications. 5 kVDC, 1-40 pF, N750 TC, threaded/wire leads.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT54 Series 5 kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT54 Series 5 kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

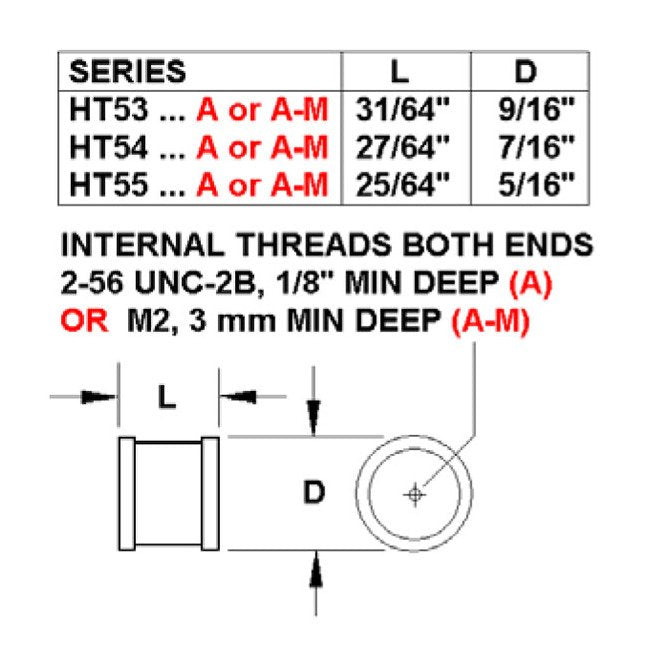

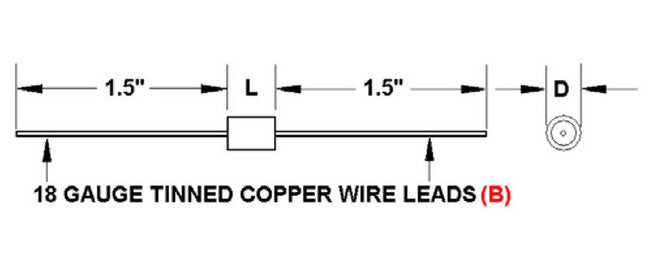

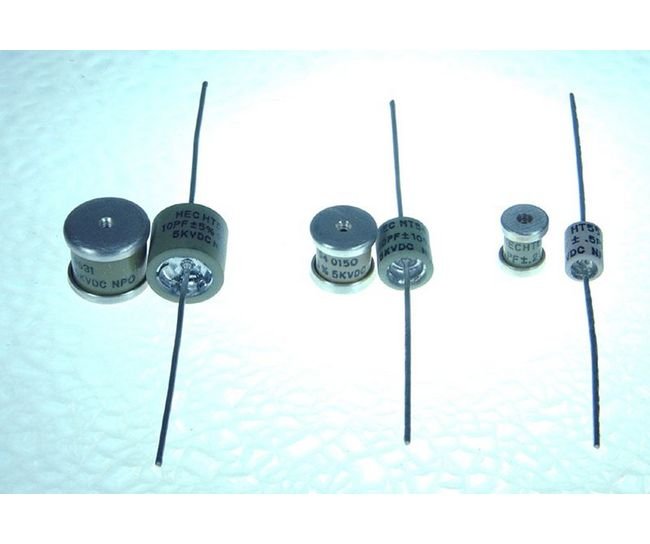

The HT54 Series Ceramic Capacitors are designed for high-performance applications requiring reliable capacitance and power handling capabilities. With a working voltage of 5 kVDC and a maximum power rating of 5 kVA, these capacitors offer a capacitance range from 1 to 40 pF to suit various electrical setups. Available with threaded terminals or wire leads, they feature Class I NP0 or N750 TC dielectrics for stable performance across temperature variations. Ideal for demanding environments, these capacitors provide exceptional frequency characteristics from 2.54 MHz to 37.1 MHz. Their compact dimensions of 3/8 in (L) x 3/8 in (D) and thread size #18 make them versatile for integration into diverse systems.
Product Specifications
Specifications Cap
25 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
37.1 MHz
Specifications Fl
2.54 MHz
Specifications Imax Rms
5.4 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
