HT54 Series 5 kVDC Ceramic Capacitors
HT54 Series 5 kVDC Ceramic Capacitors
SKU:CER-6c3b42
High-performance ceramic capacitors with 5 kVDC, 5 kVA power, and 1-40 pF capacitance for reliable performance in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT54 Series 5 kVDC Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT54 Series 5 kVDC Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

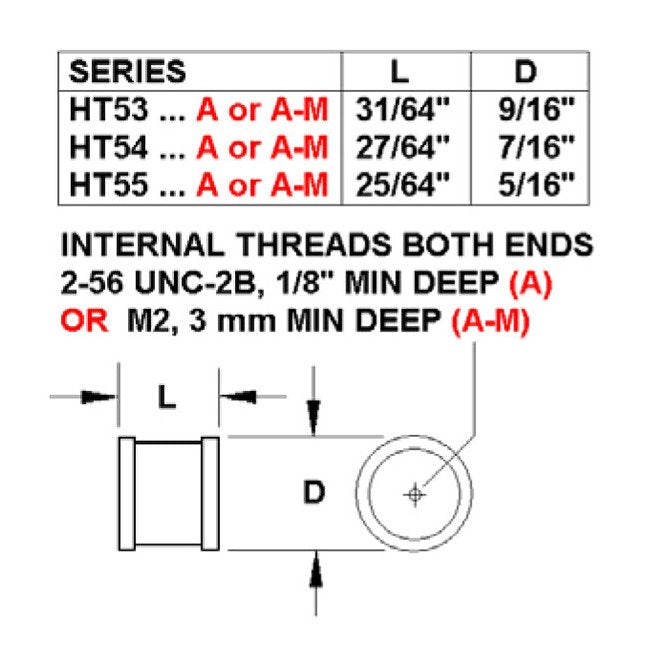

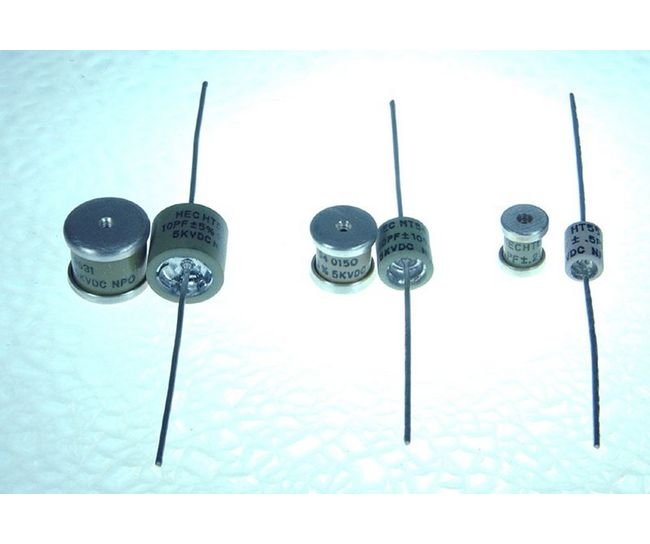

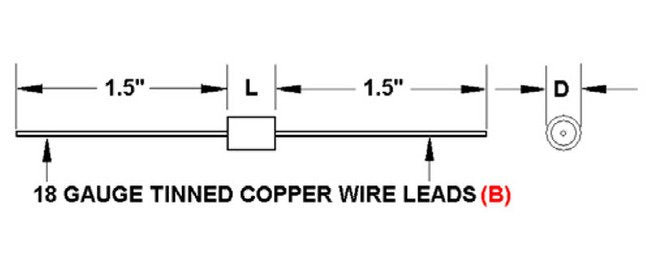

The HT54 Series Ceramic Capacitors are designed for high-performance applications with a 5 kVDC working voltage and a maximum power of 5 kVA. Featuring a capacitance range of 1 to 40 pF and available in threaded terminals or wire leads, these capacitors offer superior reliability and precision. Built with Class I NP0 or N750 TC's, they ensure stable performance in a wide frequency range. Ideal for demanding environments, these capacitors meet stringent quality standards for both consumer and institutional buyers.
Product Specifications
Specifications Cap
14 pF
Specifications Dielectric Tc
NP0
Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
23.3 MHz
Specifications Fl
4.54 MHz
Specifications Imax Rms
3.2 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
