HT54 Series 5kVA Ceramic Capacitors
HT54 Series 5kVA Ceramic Capacitors
SKU:CER-b9ce5f
High-performance 5kVA ceramic capacitors with 5kVDC working voltage, ideal for critical electronic applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT54 Series 5kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT54 Series 5kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

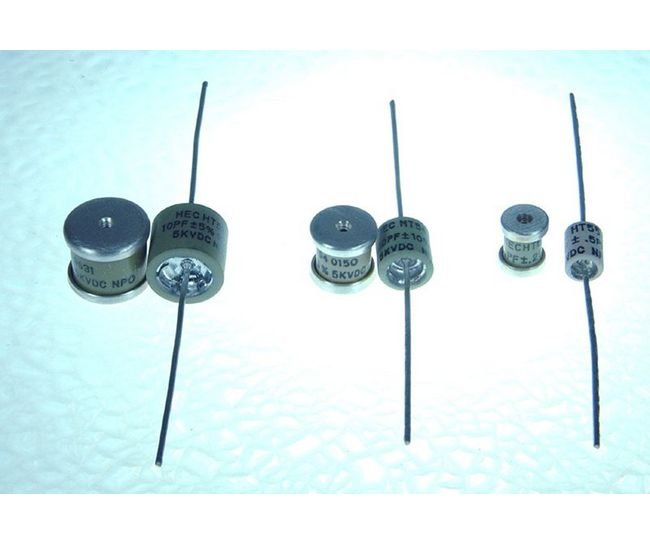

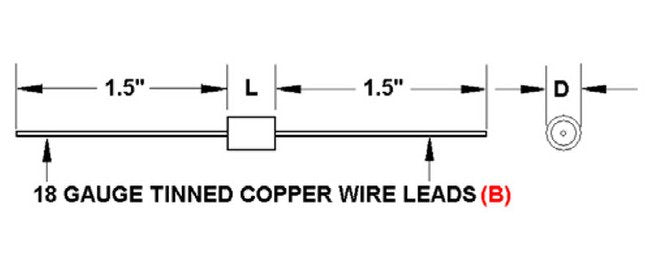

The HT54 Series 5kVA Ceramic Capacitors offer exceptional performance with a 5kVDC working voltage and 1 to 40 pF capacitance range. Featuring threaded terminals or wire leads, these capacitors are ideal for high-power applications. With Class I NP0 or N750 TC options, they ensure stability and reliability in diverse environments. Designed for professionals seeking precision and durability, the HT54 Series capacitors are a top choice for critical electronic systems.
Product Specifications
Specifications Cap
30 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
32.1 MHz
Specifications Fl
2.12 MHz
Specifications Imax Rms
5.5 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
