HT54 Series 5kVA Max Power Ceramic Capacitors - 20pF N750 5kV
HT54 Series 5kVA Max Power Ceramic Capacitors - 20pF N750 5kV
SKU:CER-cec4d1
Upgrade to HT54 Series 5kVA Capacitors - 20pF, N750, 5kV. Reliable power management for precise applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT54 Series 5kVA Max Power Ceramic Capacitors - 20pF N750 5kV
$29.99
Quantity: 1
Claim Your Seller Account
HT54 Series 5kVA Max Power Ceramic Capacitors - 20pF N750 5kV
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

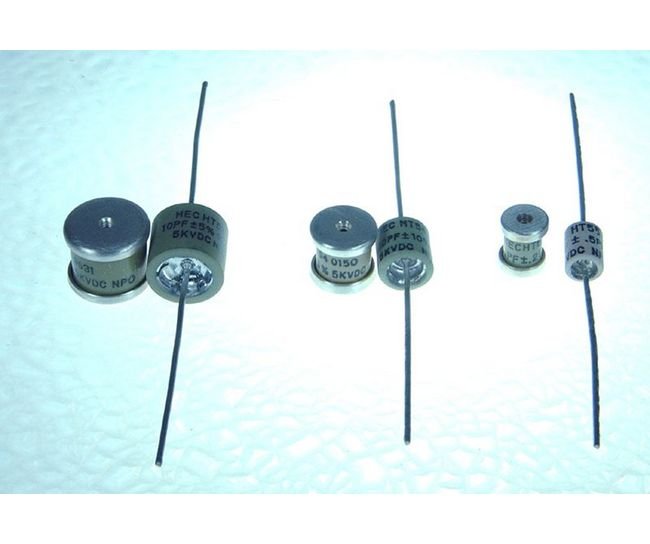

Enhance your electrical systems with the HT54 Series Ceramic Capacitors, designed for a 5kVA maximum power capacity and a 5kVDC working voltage. These capacitors offer a capacitance of 20pF, featuring threaded terminals or wire leads for versatile installation. With Class I NP0 or N750 TC options, these capacitors ensure stable performance across a frequency range of 3.18 MHz to 44.7 MHz. Upgrade to the HT54 Series for reliable power management and precision in your applications.
Product Specifications
Specifications Cap
20 pF
Specifications Dielectric Tc
N750

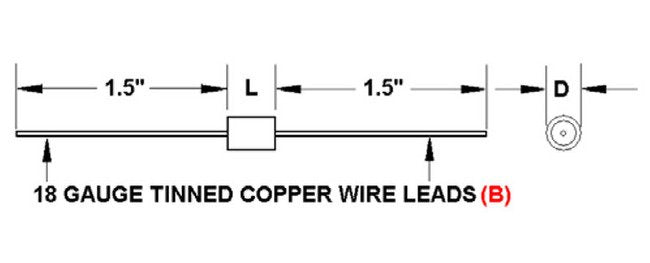

Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
44.7 MHz
Specifications Fl
3.18 MHz
Specifications Imax Rms
5.3 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
