HT54 Series High Voltage Ceramic Capacitors

Name: HT54 Series High Voltage Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-08dbfc
Price: 29.99 USD
Availability: OutOfStock

SKU:CER-08dbfc

High-performance HT54 Series Ceramic Capacitors with 5 kVDC working voltage and 5 kVA max power. Ideal for industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

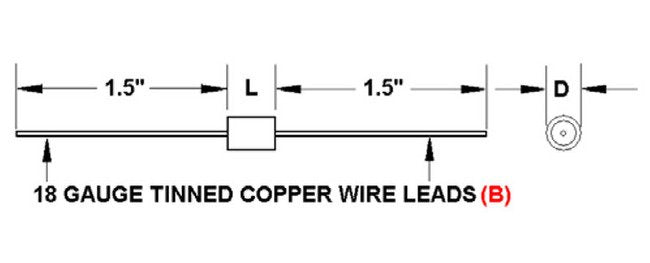

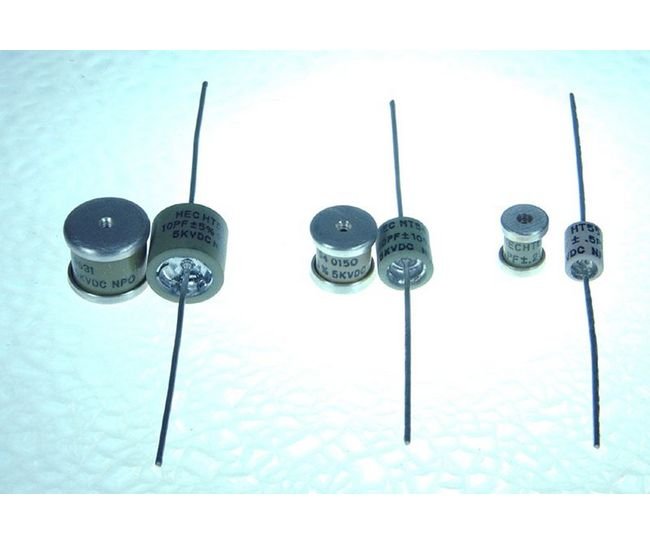

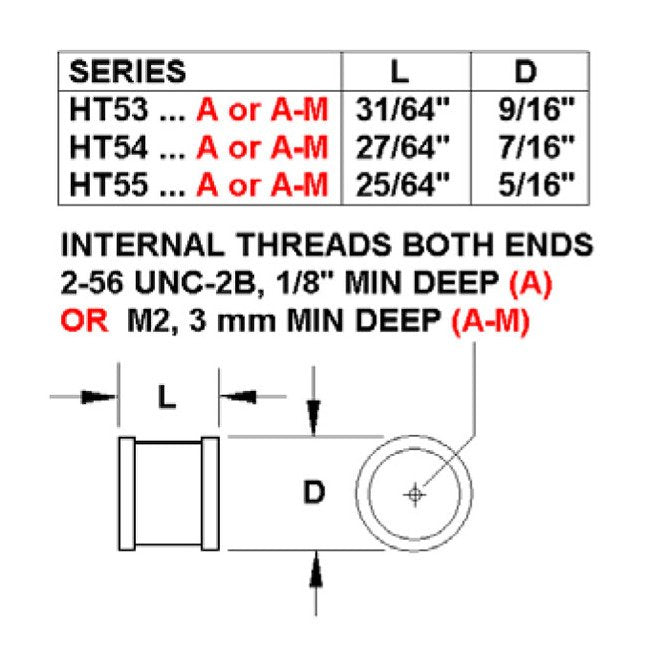

The HT54 Series Ceramic Capacitors offer exceptional performance for high-voltage applications, with a working voltage of 5 kVDC and a maximum power of 5 kVA. These capacitors come in various capacitance options ranging from 1 to 40 pF, feature threaded terminals or wire leads for secure connections, and are available in Class I NP0 or N750 dielectrics with excellent temperature stability. With dimensions of 3/8 inches for both length and diameter, these capacitors are suitable for a wide range of industrial and institutional projects.

Product Specifications

Specifications Cap

10 pF

Specifications Dielectric Tc

NP0

Specifications Dimension D

3/8 in

Specifications Dimension L

3/8 in

Specifications Fh

24.9 MHz

Specifications Fl

6.36 MHz

Specifications Imax Rms

2.8 A

Specifications Smax

5 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV
