HT55 Series 3 kVA Ceramic Capacitors
HT55 Series 3 kVA Ceramic Capacitors
SKU:CER-958f4c
High-performance HT55 Series 3 kVA Ceramic Capacitors with 5 kVDC, 15 pF capacitance, N750 dielectric, and Class I NP0/N750 TCs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT55 Series 3 kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT55 Series 3 kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

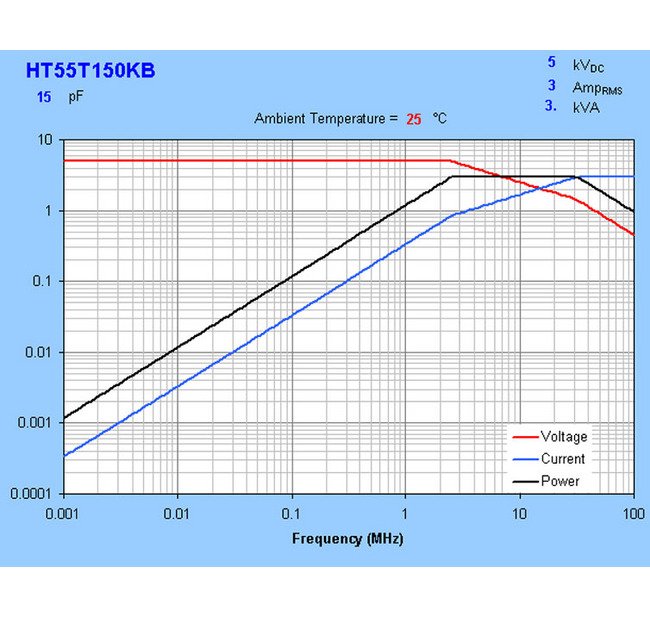

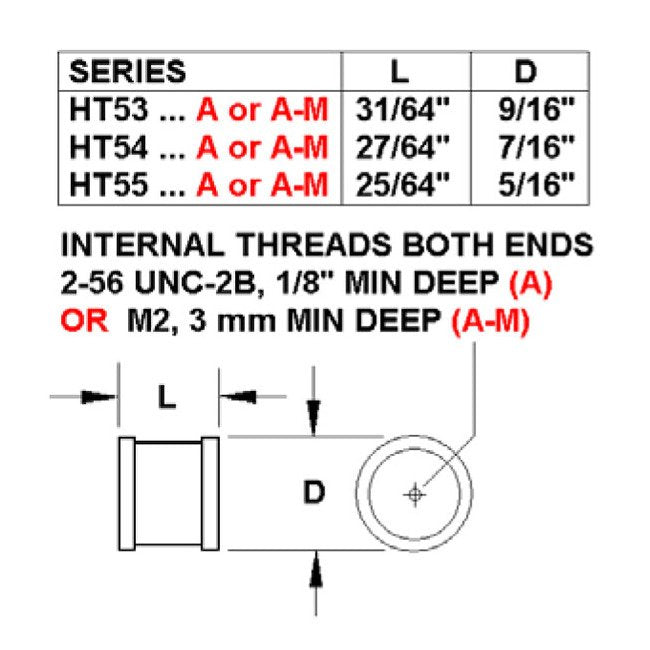

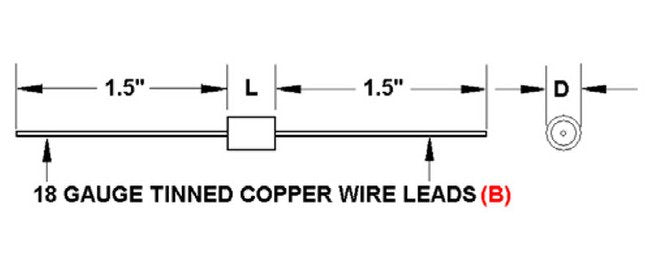

The HT55 Series Ceramic Capacitors are designed for high-performance applications with a 5 kVDC working voltage and a maximum power of 3 kVA. Featuring a capacitance of 15 pF and N750 dielectric, these capacitors deliver reliable performance from 0.377 MHz to 11.0 MHz. With threaded terminals or wire leads, Class I NP0 or N750 TCs, and compact dimensions of 11/32 in (L) x 9/32 in (D), these capacitors offer superior electrical characteristics for demanding environments. Compliant with federal procurement standards and industry certifications, the HT55 Series ensures quality and reliability for institutional buyers.
Product Specifications
Specifications Cap
15 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
9/32 in
Specifications Dimension L
11/32 in
Specifications Fh
11.0 MHz
Specifications Fl
0.377 MHz
Specifications Imax Rms
3.0 A
Specifications Smax
3 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
