HT55 Series 3 kVA Max Power Ceramic Capacitors - 5 kVDC
HT55 Series 3 kVA Max Power Ceramic Capacitors - 5 kVDC
SKU:CER-d6ce2b
High-performance HT55 Series Ceramic Capacitors with 5 kVDC, 3 kVA max power, and Class I NP0 or N750 TC's. Reliable and durable for diverse electronic applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT55 Series 3 kVA Max Power Ceramic Capacitors - 5 kVDC
$29.99
Quantity: 1
Claim Your Seller Account
HT55 Series 3 kVA Max Power Ceramic Capacitors - 5 kVDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

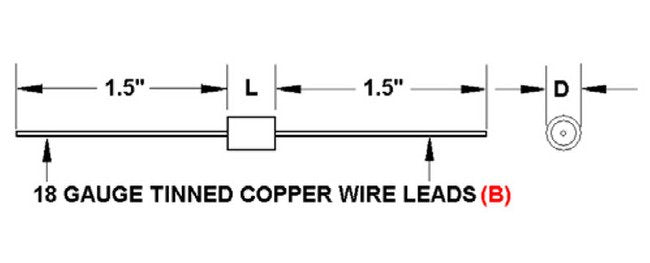

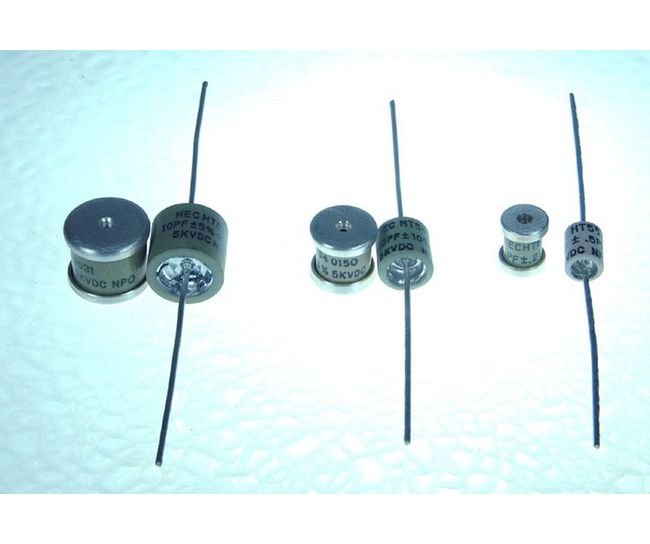

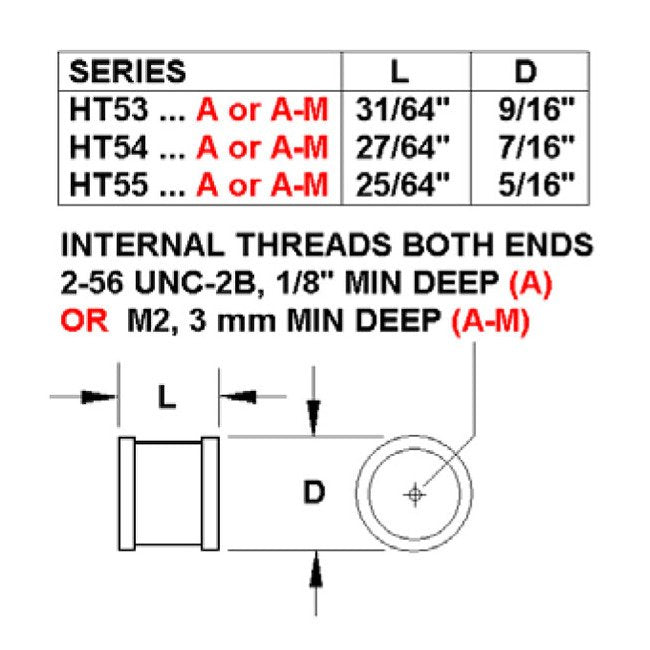

The HT55 Series Ceramic Capacitors offer reliable performance with a 5 kVDC working voltage and a maximum power of 3 kVA. Featuring a capacitance range of 1 to 40 pF, these capacitors are available with threaded terminals or wire leads. With Class I NP0 or N750 TC's, they provide excellent stability and durability. Ideal for a wide range of applications requiring high voltage and power capabilities, these capacitors ensure precision and efficiency in electronic systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
3 pF
Specifications Dielectric Tc
NP0
Specifications Dimension D
9/32 in
Specifications Dimension L
11/32 in
Specifications Fh
39.7 MHz
Specifications Fl
2.26 MHz
Specifications Imax Rms
1.4 A
Specifications Smax
3 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
