HT55 Series 3 kVA Max Power Ceramic Capacitors 5 pF 5 kVDC

Name: HT55 Series 3 kVA Max Power Ceramic Capacitors 5 pF 5 kVDC
Brand: High Energy Corp.
SKU: CER-53a335
Price: 29.99 USD
Availability: OutOfStock

SKU:CER-53a335

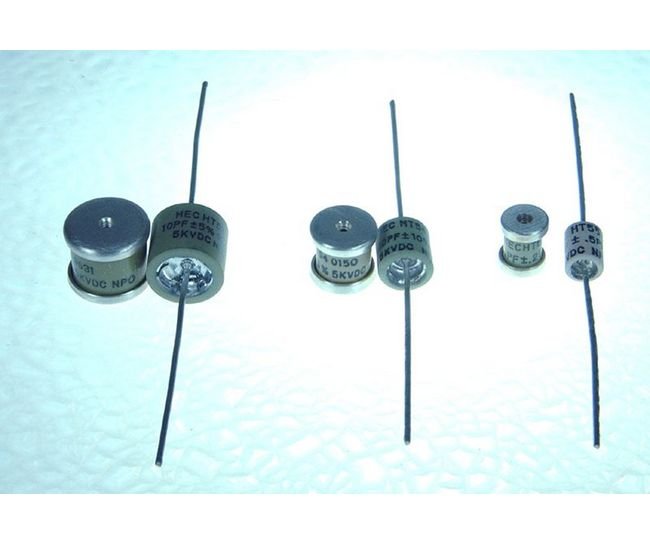

High-performance HT55 Series 3 kVA Max Power Ceramic Capacitors with 5 pF capacitance & 5 kVDC working voltage. Threaded terminals/wire leads. NP0/N750 TC's. Ideal for institutional applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

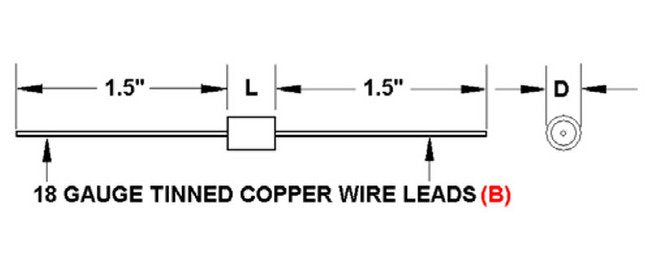

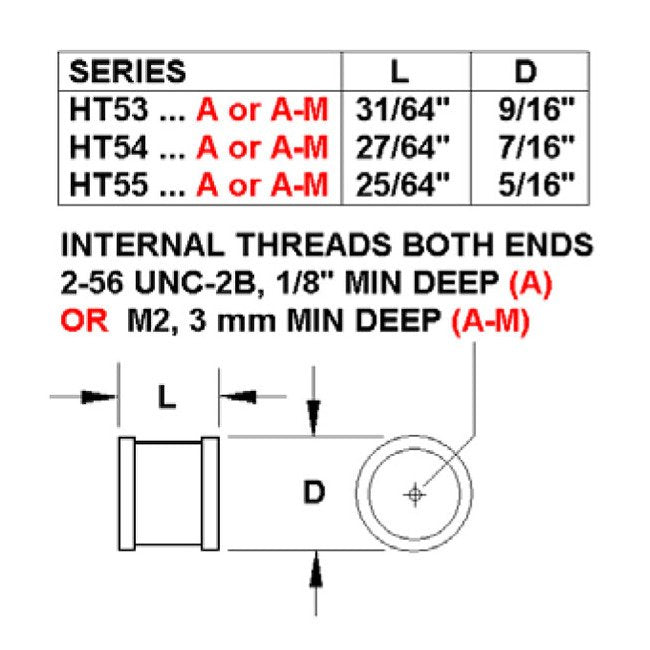

The HT55 Series Ceramic Capacitors are designed to meet the demanding power requirements of institutional applications. With a working voltage of 5 kVDC and a capacitance range of 1 to 40 pF, these capacitors boast Class I NP0 or N750 TC's for superior performance. Choose between threaded terminals or wire leads for easy installation, making them versatile for various setups. The HT55 Series ensures reliable operation with a maximum power rating of 3 kVA, making it ideal for high-power applications. These capacitors offer exceptional frequency capabilities, low losses, and high stability, meeting strict institutional procurement standards.

Product Specifications

Specifications Cap

5 pF

Specifications Dielectric Tc

NP0

Specifications Dimension D

9/32 in

Specifications Dimension L

11/32 in

Specifications Fh

39.7 MHz

Specifications Fl

2.26 MHz

Specifications Imax Rms

1.7 A

Specifications Smax

3 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV

HT55 Series 3 kVA Max Power Ceramic Capacitors 5 pF 5 kVDC
