HT55 Series 3kVA Ceramic Capacitors, 5kVDC, NP0, 7pF

Name: HT55 Series 3kVA Ceramic Capacitors, 5kVDC, NP0, 7pF
Brand: High Energy Corp.
SKU: CER-276ebb
Price: 39.99 USD
Availability: OutOfStock

SKU:CER-276ebb

Premium HT55 Series Ceramic Capacitors for high-power applications, 5kVDC, NP0, 7pF capacitance

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

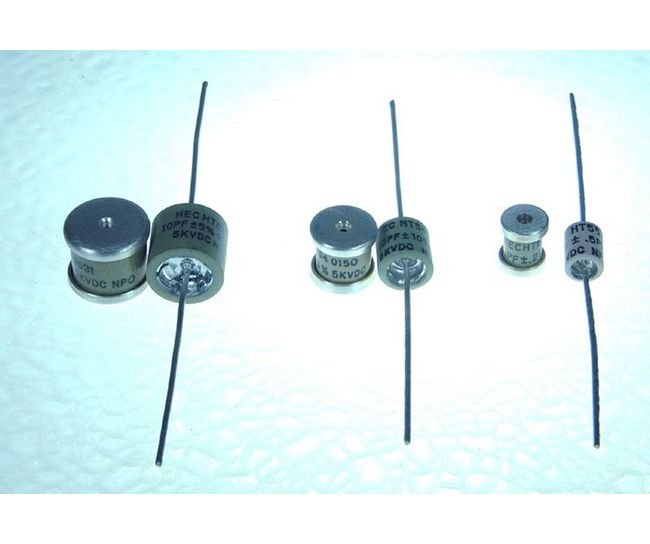

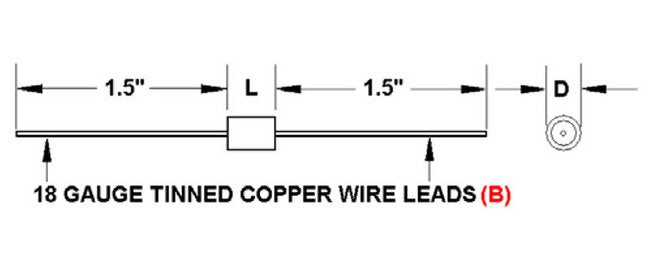

The HT55 Series Ceramic Capacitors are precision-engineered for high-performance applications requiring a maximum power of 3 kVA. With a 5 kVDC working voltage, NP0 dielectric, and 7 pF capacitance, these capacitors deliver exceptional stability and reliability. Choose between threaded terminals or wire leads for easy installation. Meeting Class I NP0 or N750 TC's ensures consistent performance across a wide frequency range. Ideal for industries demanding stringent quality and durability standards.

Product Specifications

Specifications Cap

7 pF

Specifications Dielectric Tc

NP0

Specifications Dimension D

9/32 in

Specifications Dimension L

11/32 in

Specifications Fh

19.4 MHz

Specifications Fl

0.870 MHz

Specifications Imax Rms

2.2 A

Specifications Smax

3 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV

HT55 Series 3kVA Ceramic Capacitors, 5kVDC, NP0, 7pF
