HT55 Series 3kVA Ceramic Capacitors - High Voltage, Threaded Terminals
HT55 Series 3kVA Ceramic Capacitors - High Voltage, Threaded Terminals
SKU:CER-8eee5b
High voltage 3kVA ceramic capacitors with precise capacitance range and multiple thread options for versatile applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT55 Series 3kVA Ceramic Capacitors - High Voltage, Threaded Terminals
$29.99
Quantity: 1
Claim Your Seller Account
HT55 Series 3kVA Ceramic Capacitors - High Voltage, Threaded Terminals
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

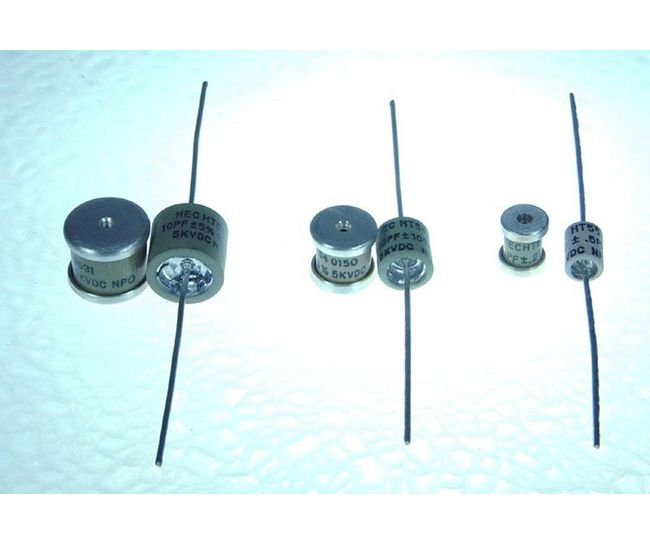

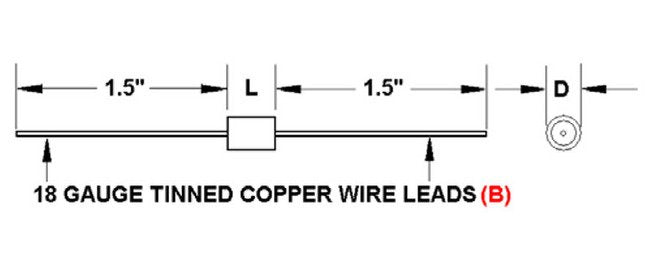

The HT55 Series Ceramic Capacitors are designed for high voltage applications with a 5 kVDC working voltage and a maximum power rating of 3 kVA. With a capacitance range of 1 to 40 pF, these capacitors offer precise performance. They come with a choice of threaded terminals or wire leads and are available in Class I NP0 or N750 TC's. The capacitance tolerance options of ±0.5 pF, ±0.25 pF, ±5%, or ±10% offer flexibility for various requirements, and the different thread options (#18, 2-56, M4) cater to diverse installation needs.
Product Specifications
Specifications Cap
1 to 15 pF
Specifications Capacitance Tolerance
±0.5 pF | ±0.25 pF | ±5% | ±10%

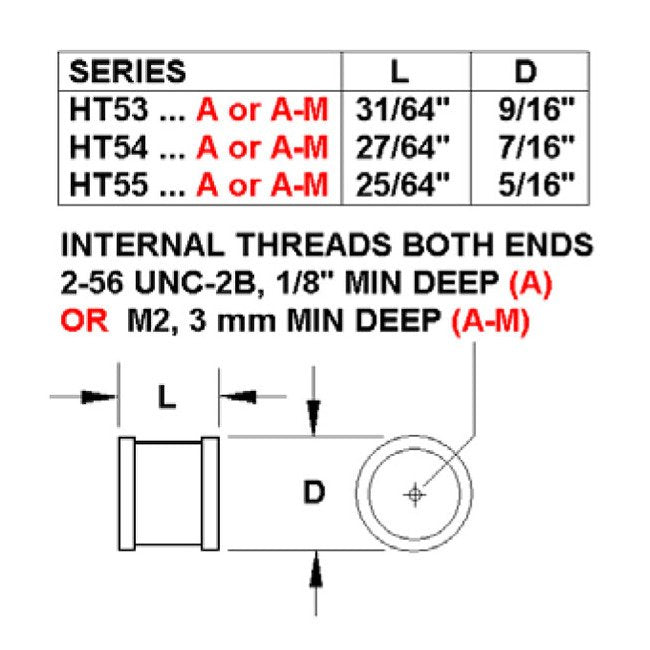

Specifications Thread
#18 | 2-56 | M4
