HT55 Series 3kVA Max Power Ceramic Capacitors - N750 TC, 5kV DC, 8pF CAP

Name: HT55 Series 3kVA Max Power Ceramic Capacitors - N750 TC, 5kV DC, 8pF CAP
Brand: High Energy Corp.
SKU: CER-56458d
Price: 24.99 USD
Availability: OutOfStock

SKU:CER-56458d

High-performance HT55 Series Ceramic Capacitors - 5kV DC, 3kVA Max Power, N750 TC | Ideal for industrial & institutional projects.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

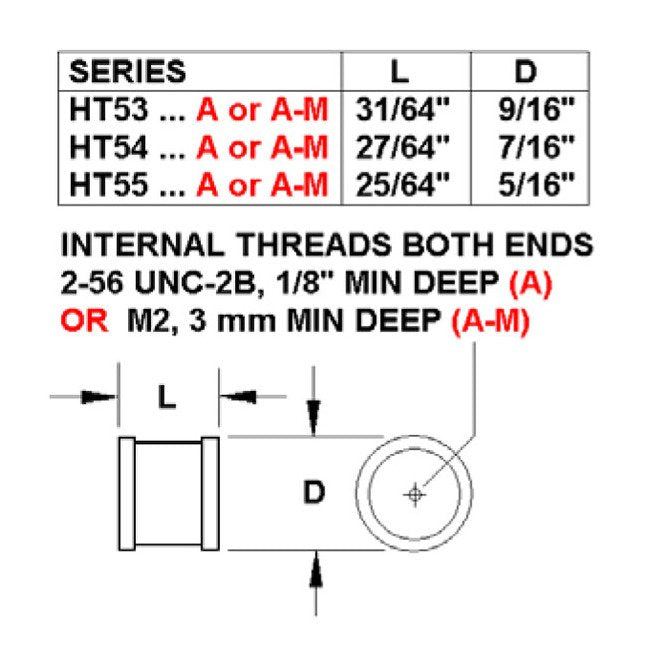

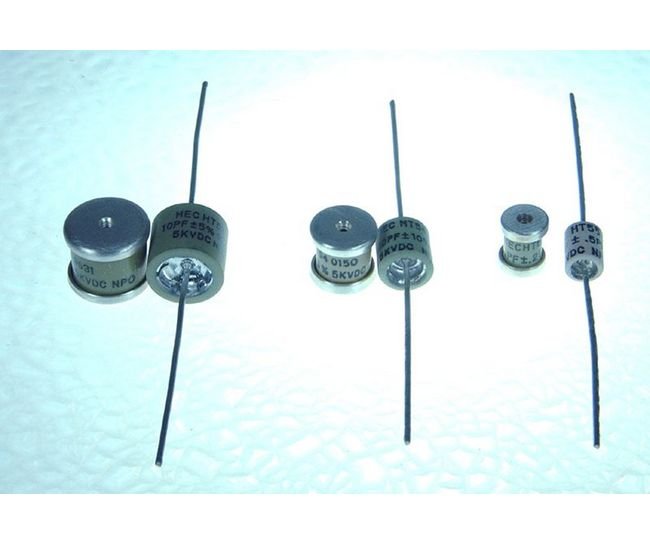

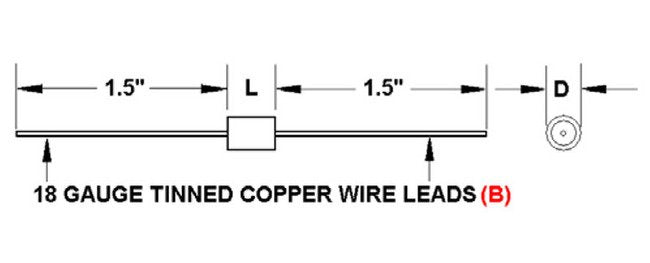

The HT55 Series Ceramic Capacitors offer exceptional performance with a working voltage of 5kVDC and a maximum power of 3kVA. These capacitors feature a capacitance range of 1 to 40 pF, available with threaded terminals or wire leads. With Class I NP0 or N750 TC options, these capacitors provide high stability and reliability for various applications. The dimensions are L: 11/32 in, D: 9/32 in, threaded with #18 size, suitable for precise installations. Ideal for industrial and institutional projects requiring superior capacitance and excellent dielectric material properties.

Product Specifications

Specifications Cap

8 pF

Specifications Dielectric Tc

N750

Specifications Dimension D

9/32 in

Specifications Dimension L

11/32 in

Specifications Fh

19.9 MHz

Specifications Fl

0.754 MHz

Specifications Imax Rms

2.4 A

Specifications Smax

3 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV

HT55 Series 3kVA Max Power Ceramic Capacitors - N750 TC, 5kV DC, 8pF CAP
