HT55 Series 5kV 3kVA Ceramic Capacitors
HT55 Series 5kV 3kVA Ceramic Capacitors
SKU:CER-3cf0cf
High-performance 5kV 3kVA Ceramic Capacitors with 10 pF capacitance, N750 dielectric, and Class I NP0/N750 TC's for reliable high-voltage applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT55 Series 5kV 3kVA Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HT55 Series 5kV 3kVA Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

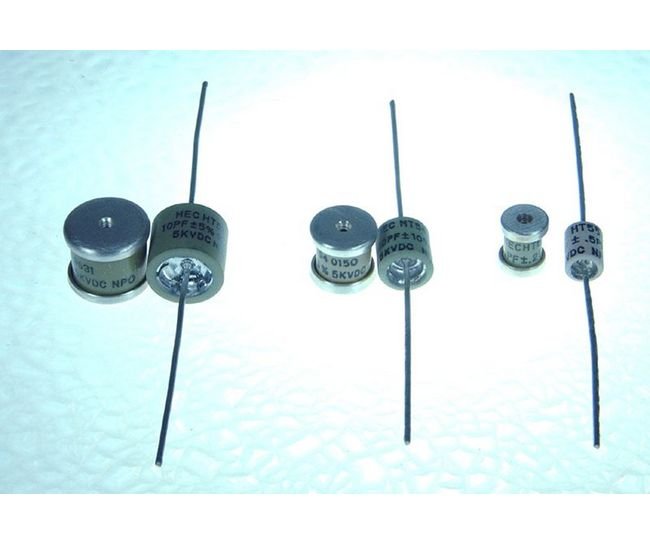

The HT55 Series 5kV 3kVA Ceramic Capacitors offer a reliable solution for high-voltage applications, featuring a 10 pF capacitance, N750 dielectric for stable performance, and a maximum power rating of 3 kVA. With threaded terminals or wire leads, these capacitors are Class I NP0 or N750 TC's compliant, ensuring precision and durability. Ideal for a wide range of electronic systems requiring high voltage handling and low loss, these capacitors provide exceptional capacitance stability from 1 to 40 pF. Upgrade your electrical projects with the HT55 Series capacitors, meeting stringent industry standards and specifications.
Product Specifications
Specifications Cap
10 pF
Specifications Dielectric Tc
N750

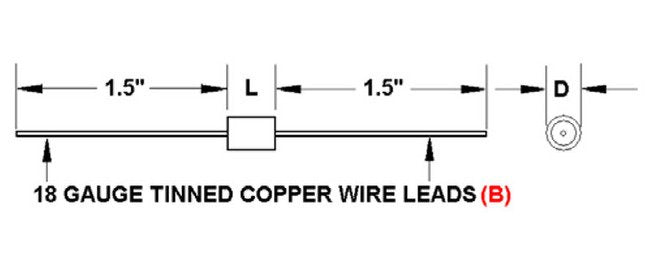

Specifications Dimension D
9/32 in
Specifications Dimension L
11/32 in
Specifications Fh
15.0 MHz
Specifications Fl
0.565 MHz
Specifications Imax Rms
2.8 A
Specifications Smax
3 kV·A

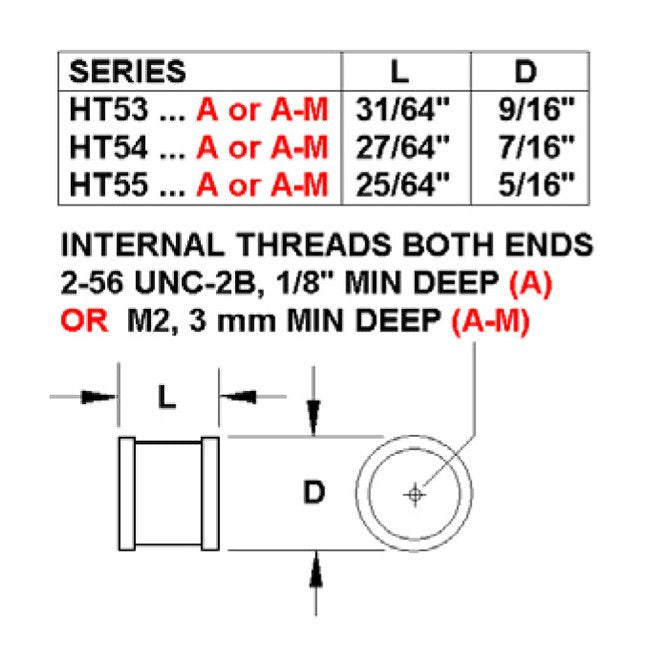

Specifications Thread
#18
Specifications Vmax Dc
5 kV
