HT55 Series Ceramic Capacitors - 3 kVA Max Power, 5 kVDC, N750 TC

Name: HT55 Series Ceramic Capacitors - 3 kVA Max Power, 5 kVDC, N750 TC
Brand: High Energy Corp.
SKU: CER-d0fdea
Price: 39.99 USD
Availability: OutOfStock

SKU:CER-d0fdea

High-performance HT55 Series Ceramic Capacitors - 3 kVA max power, 5 kVDC, N750 TC. Ideal for versatile applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

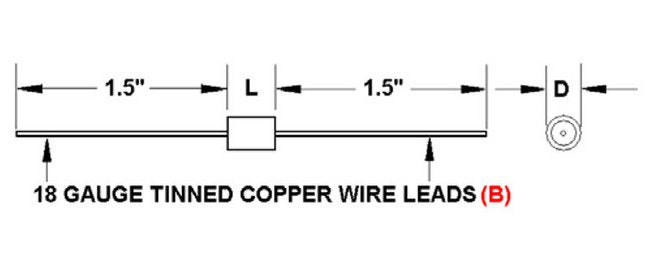

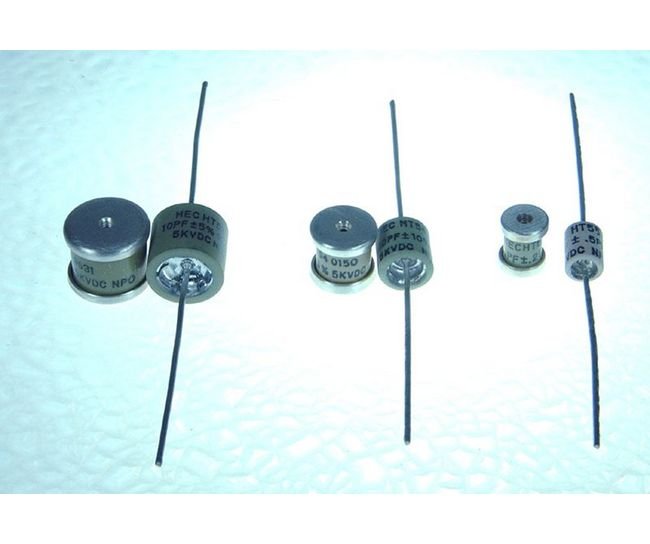

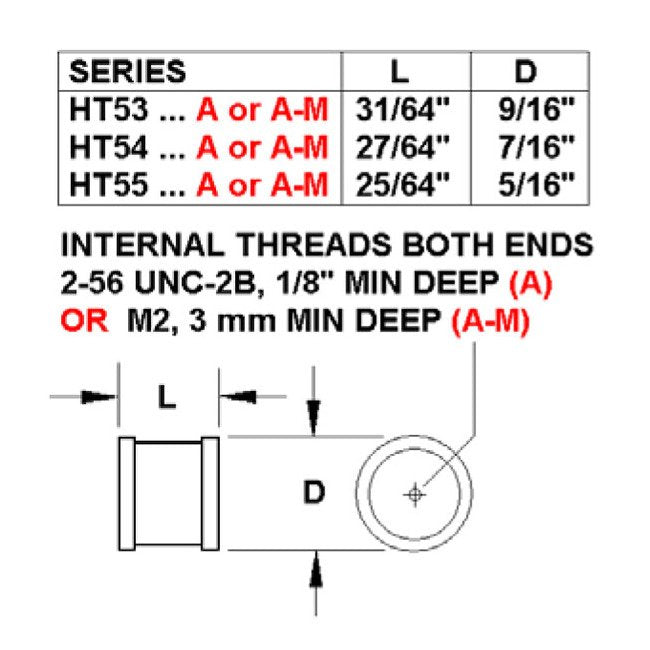

The HT55 Series Ceramic Capacitors deliver exceptional performance with a 5 kVDC working voltage, 3 kVA max power, and 12 pF capacitance. Featuring threaded terminals or wire leads for versatile installation, these capacitors are constructed with Class I NP0 or N750 TC dielectrics. With a frequency range from 0.377 MHz to 11.0 MHz and a maximum RMS current of 3.0 A, these capacitors are reliable and efficient for a wide range of applications. Designed with precise dimensions of 11/32 in (L) and 9/32 in (D), the HT55 Series ensures high-quality and consistent operation, meeting the stringent requirements of institutional and government procurement standards.

Product Specifications

Specifications Cap

12 pF

Specifications Dielectric Tc

N750

Specifications Dimension D

9/32 in

Specifications Dimension L

11/32 in

Specifications Fh

11.0 MHz

Specifications Fl

0.377 MHz

Specifications Imax Rms

3.0 A

Specifications Smax

3 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV
