HT55 Series Ceramic Capacitors - 5 kVDC 3 kVA Max Power
HT55 Series Ceramic Capacitors - 5 kVDC 3 kVA Max Power
SKU:CER-fa3d1a
High-performance HT55 Series Ceramic Capacitors - 5 kVDC, 3 kVA Max Power. Exceptional stability & precision for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HT55 Series Ceramic Capacitors - 5 kVDC 3 kVA Max Power
$29.99
Quantity: 1
Claim Your Seller Account
HT55 Series Ceramic Capacitors - 5 kVDC 3 kVA Max Power
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

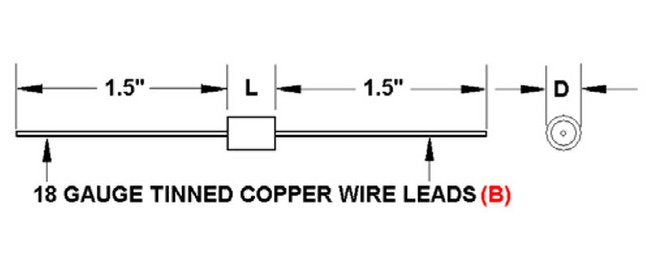

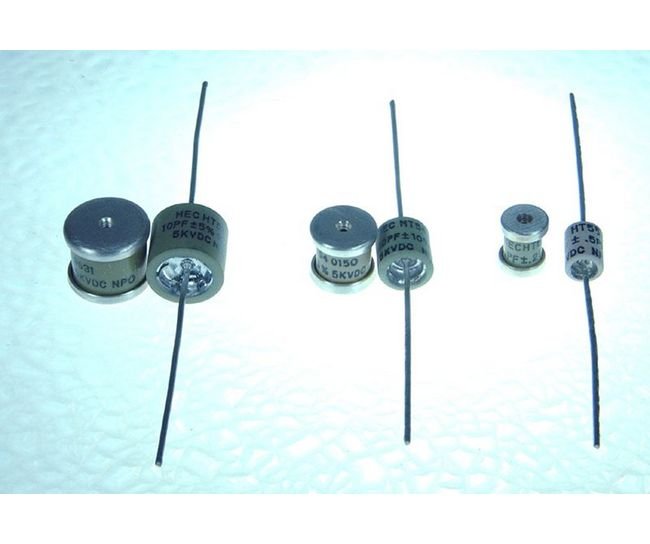

The HT55 Series Ceramic Capacitors are engineered for high-performance applications requiring a robust 5 kVDC working voltage and a maximum power rating of 3 kVA. With capacitance ranging from 1 to 40 pF and the choice of threaded terminals or wire leads, these capacitors deliver exceptional stability and precision. Featuring Class I NP0 or N750 TC's, they ensure reliable operation across a wide frequency range. Ideal for demanding electronic projects, the HT55 Series guarantees efficiency and durability in a compact design.
Product Specifications
Specifications Cap
2 pF
Specifications Dielectric Tc
NP0

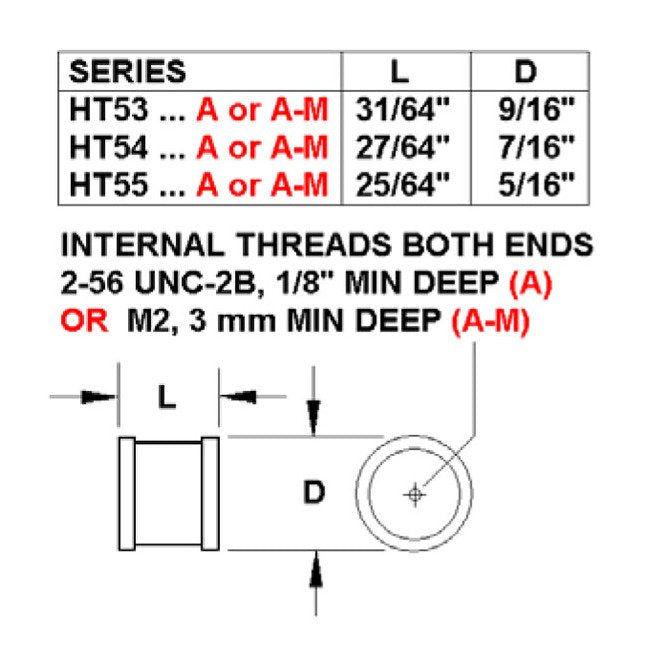

Specifications Dimension D
9/32 in
Specifications Dimension L
11/32 in
Specifications Fh
56.5 MHz
Specifications Fl
3.77 MHz
Specifications Imax Rms
1.3 A
Specifications Smax
3 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
