HT57 Series 50pF Ceramic Capacitors
HT57 Series 50pF Ceramic Capacitors
SKU:CER-378232
High-performance HT57 Series Ceramic Capacitors with 50 pF capacitance. Ideal for precision applications in institutional settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
HT57 Series 50pF Ceramic Capacitors
$24.99
Quantity: 1
Claim Your Seller Account
HT57 Series 50pF Ceramic Capacitors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT57 Series Ceramic Capacitors are engineered for high-performance applications requiring impeccable precision. With a capacitance rating of 50 pF and a dielectric of NP0, these capacitors ensure stable performance across a wide frequency range from 0.990 MHz to 15.4 MHz. Featuring a VMAX (DC) of 15 kV, SMAX of 35 kV·A, and IMAX (RMS) of 13.0 A, these capacitors deliver exceptional reliability under demanding conditions. Ideal for institutional and government procurement, the HT57 Series meets stringent industry standards and offers superior quality for critical electronic systems.
Product Specifications
Specifications Cap
50 pF
Specifications Dielectric Tc
NP0
Specifications Fh
15.4 MHz
Specifications Fl
0.990 MHz
Specifications Imax Rms
13.0 A
Specifications Smax
35 kV·A

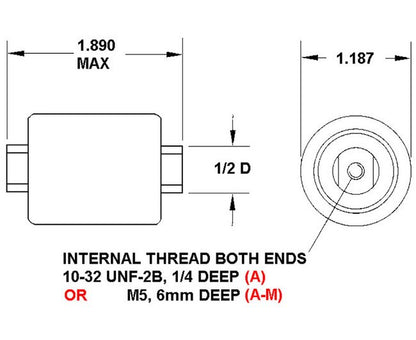

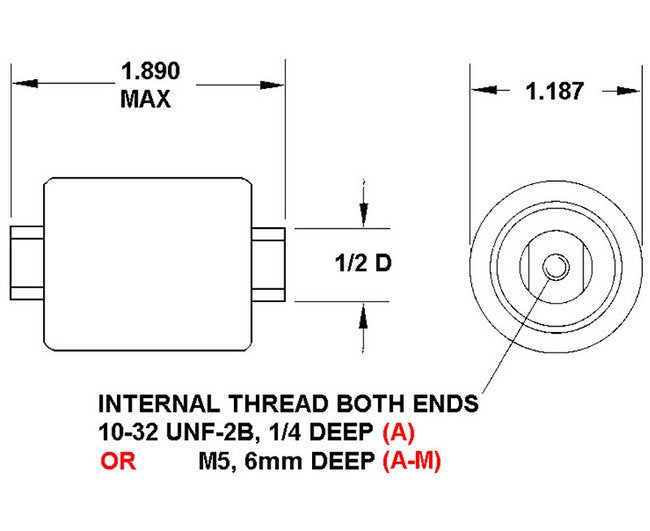

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
