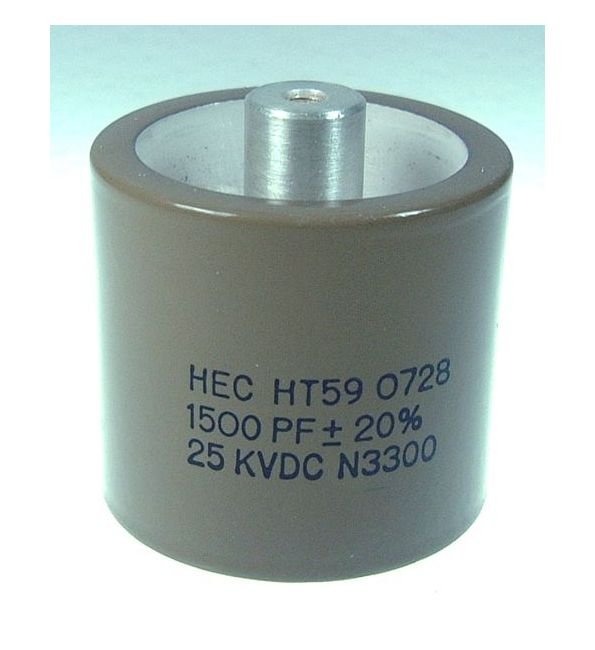

HT59 Series Ceramic Capacitors - 25 kVDC, 50 kVA, 1500 pF

Name: HT59 Series Ceramic Capacitors - 25 kVDC, 50 kVA, 1500 pF
Brand: High Energy Corp.
SKU: CER-8f3740
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-8f3740

High-performance HT59 Series Ceramic Capacitors with 25 kVDC, 50 kVA, and 1500 pF capacitance for precision applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

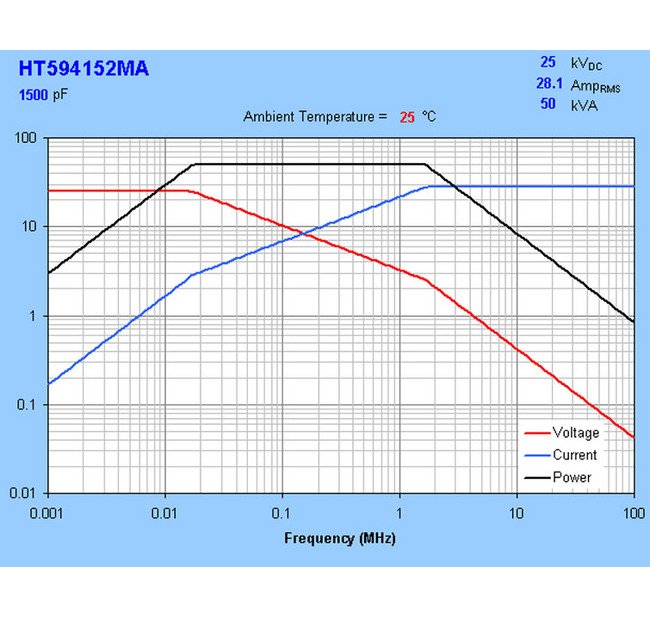

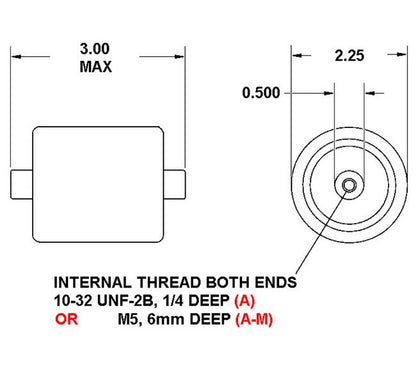

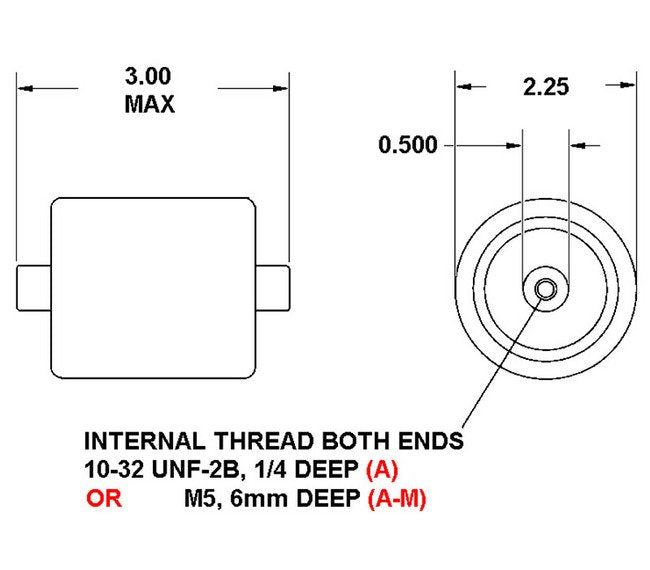

The HT59 Series Ceramic Capacitors are designed for high-performance applications requiring a 25 kVDC working voltage, 50 kVA max power, and 1500 pF capacitance. With a choice of four Class I TC dielectrics including N5250, these capacitors offer reliable and precise capacitance values. Measuring 2.25" in diameter and up to 3" in length, they provide exceptional electrical characteristics at frequencies ranging from 0.0170 MHz to 1.67 MHz. Ideal for projects demanding high voltage and current requirements, these capacitors deliver robust performance and durability.

Product Specifications

Specifications Cap

1500 pF

Specifications Dielectric Tc

N5250

Specifications Fh

1.67 MHz

Specifications Fl

0.0170 MHz

Specifications Imax Rms

28.1 A

Specifications Smax

50 kV·A

Specifications Thread

10-32

Specifications Vmax Dc

25 kV
