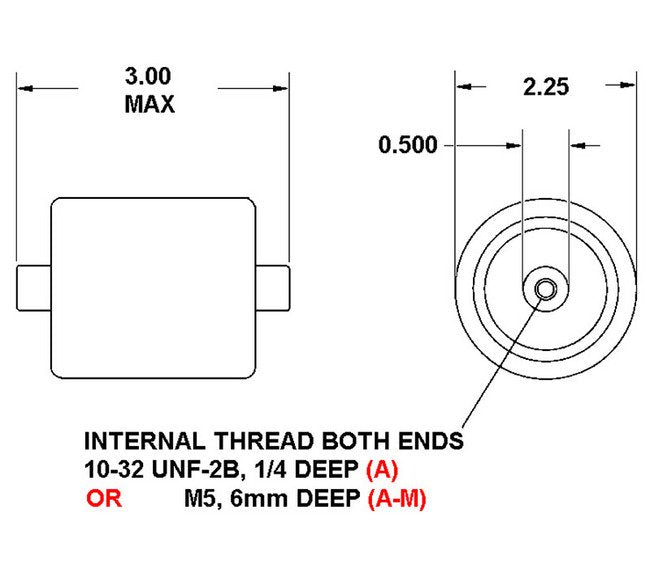

The HT59 Series Ceramic Capacitors are designed to meet the stringent requirements of high voltage applications, providing a reliable solution with a working voltage of 25 kVDC. With a maximum power rating of 50 kVA and capacitance options ranging from 50 to 1500 pF, these capacitors offer versatile performance. The 2.25" diameter and 3" maximum length ensure compatibility in various setups. Choose from four Class I TC options to suit specific technical requirements, offering precision and stability in demanding environments.
Product Specifications
Specifications Cap
700 pF
Specifications Dielectric Tc
N3300
Specifications Fh
2.73 MHz
Specifications Fl
0.0363 MHz
Specifications Imax Rms
24.5 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
