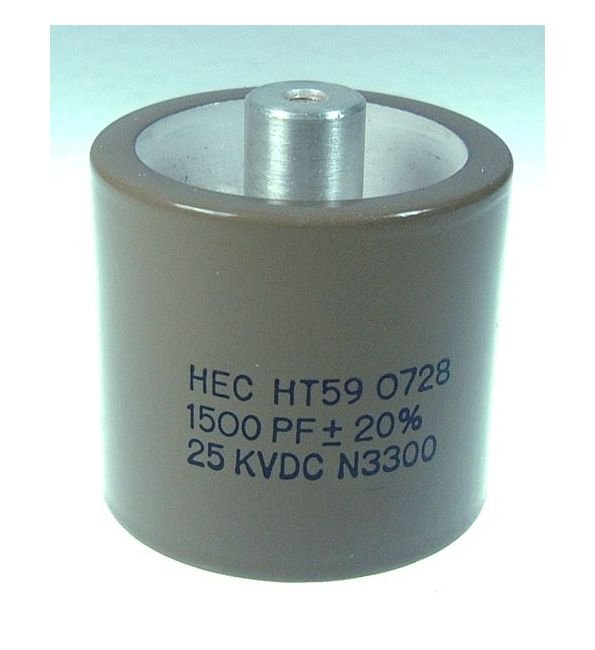

HT59 Series High-Voltage Ceramic Capacitors
HT59 Series High-Voltage Ceramic Capacitors
SKU:CER-ce1b28
High-voltage ceramic capacitors for precise and stable energy storage in industrial and government applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HT59 Series High-Voltage Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
HT59 Series High-Voltage Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

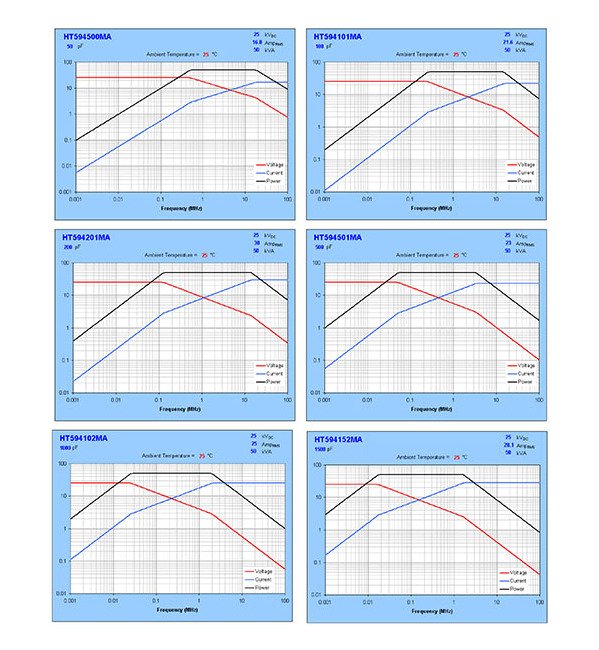

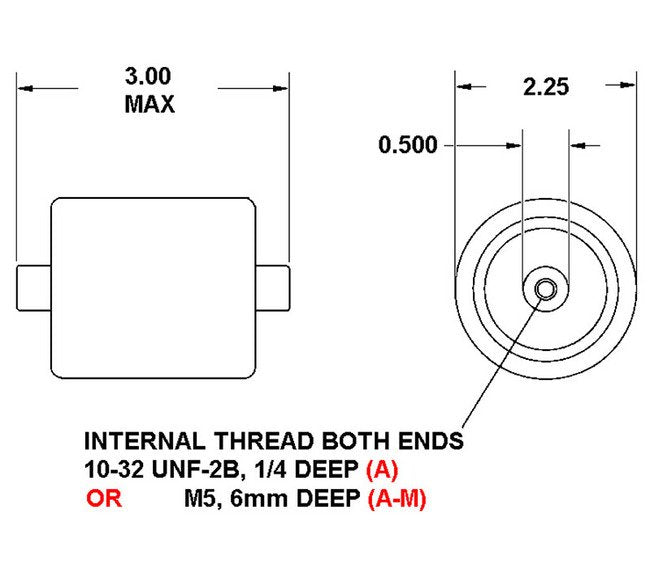

The HT59 Series Ceramic Capacitors offer exceptional performance for high-voltage applications. With a working voltage of up to 25 kVDC, maximum power of 50 kVA, and a wide capacitance range from 50 to 1500 pF, these capacitors provide reliable energy storage and discharge capabilities. Featuring a 2.25" diameter and maximum length of 3", the HT59 Series comes in four Class I TC options for tailored performance. These capacitors are ideal for demanding industrial, commercial, and government electronic systems where high-voltage stability and precision are critical. Compliant with rigorous standards, the HT59 Series ensures quality and reliability in every application.
Product Specifications
Specifications Cap
50 to 1500 pF
Specifications Capacitance Tolerance
±10% | ±20%
Specifications Thread
10-32 | M5
Specifications Vmax Dc
15 kV | 20 kV | 25 kV
