HT59 Series High Voltage Ceramic Capacitors
HT59 Series High Voltage Ceramic Capacitors
SKU:CER-5ecda4
High-voltage ceramic capacitors with 25 kVDC, 50 kVA max power, and 500-1500 pF capacitance. Reliable performance for industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
HT59 Series High Voltage Ceramic Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
HT59 Series High Voltage Ceramic Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT59 Series Ceramic Capacitors are designed for high-performance applications requiring reliable power handling and precise capacitance. With a working voltage of 25 kVDC and a maximum power of 50 kVA, these capacitors offer a capacitance range of 500 to 1500 pF. Featuring a Class I TC design, the HT59 Series ensures stable performance in diverse operating conditions. Ideal for industrial and institutional settings, these capacitors deliver exceptional efficiency and durability, meeting stringent quality standards.
Product Specifications
Specifications Cap
500 pF
Specifications Dielectric Tc
N3300
Specifications Fh
3.36 MHz
Specifications Fl
0.0509 MHz
Specifications Imax Rms
23.0 A
Specifications Smax
50 kV·A

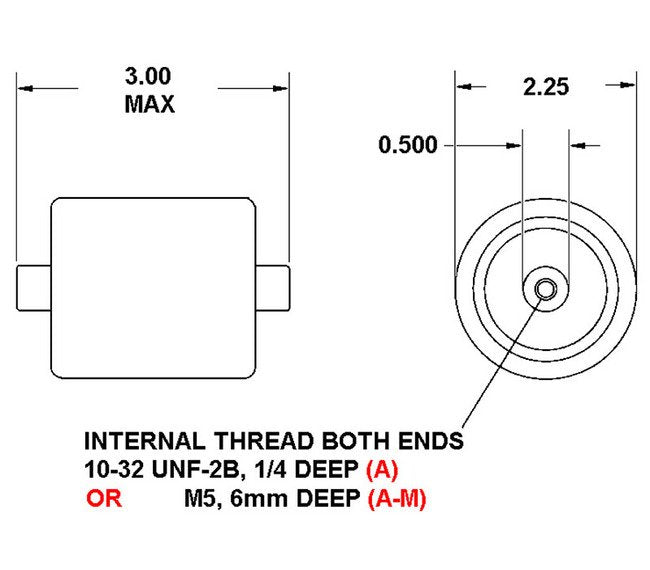

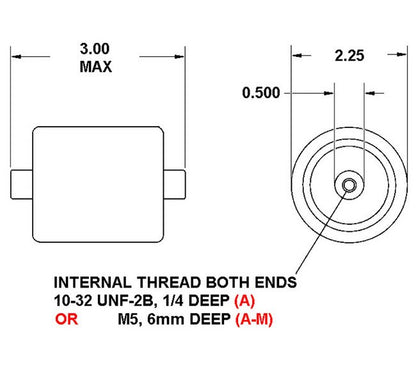

Specifications Thread
10-32
Specifications Vmax Dc
25 kV
