Hubbell Furnas Pressure Switch - 95/125 PSI Factory Set Pressure Switch

Name: Hubbell Furnas Pressure Switch - 95/125 PSI Factory Set Pressure Switch
Brand: Marcuse & Son, Inc.
SKU: HUB-2db12f
Price: 79.99 USD
Availability: OutOfStock

SKU:HUB-2db12f

Hubbell Furnas Pressure Switch - Reliable, precise pressure control for industrial applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

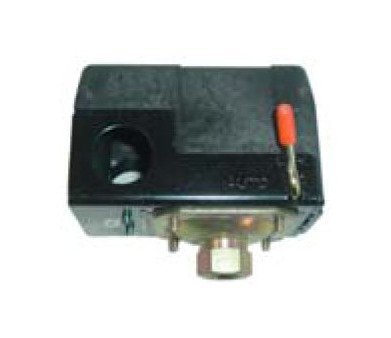

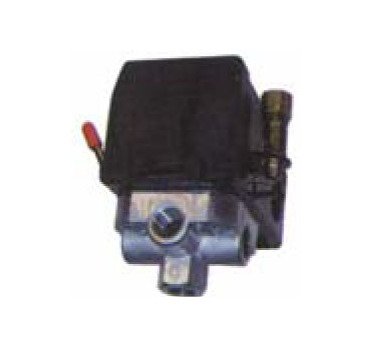

The Hubbell Furnas Pressure Switch is designed for precise pressure control in industrial applications. Featuring a non-metallic cover with visible contacts, this switch ensures reliable performance with no drift pressure settings. With factory set pressures of 95 PSI when on and 125 PSI when off, this switch offers accuracy and consistency. It is NEMA 1 compliant, with a maximum pressure of 150 PSI and 1/4-inch female pipe thread size. The easy-to-adjust design, automatic unloader valve option, and standard pulsation dampener make it a versatile and efficient choice for various systems.

Product Specifications

Factory Set Pressure Factory Set Pressure When Off

125 psi

Factory Set Pressure Factory Set Pressure When On

95 psi

Note 0

Maximum pressure on 69MB7Series is 150 psiThese units have the 4 port manifold

Power Rating 3 Phase Power Rating At 115 V

3 hp

Power Rating Single Phase Power Rating At 115 V

1-1/2 hp

Power Rating Single Phase Power Rating At 230 V

2 hp

Power Rating Voltage

115 V | 230 V

Specifications Brand

Hubbell

Specifications Female Pipe Thread Fpt Pipe Size

1/4 in

Specifications Industry Standards

NEMA 1

Specifications Maximum Pressure

150 psi

Specifications Offon Lever

Specifications Phase

1 | 3

Specifications Unloaded Valve

Hubbell Furnas Pressure Switch - 95/125 PSI Factory Set Pressure Switch
