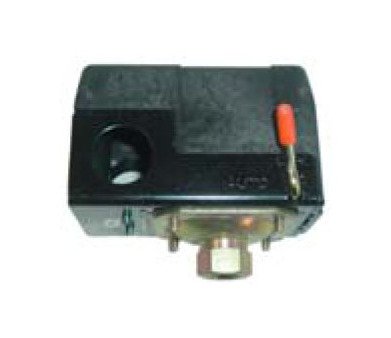

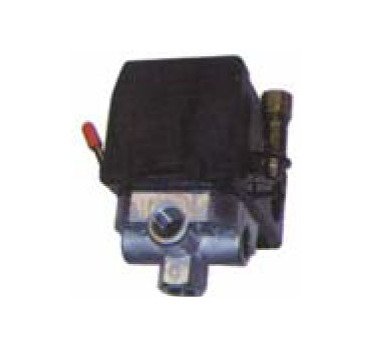

Hubbell Furnas Pressure Switch - 95/125 psi Factory Set Pressure Switch

Name: Hubbell Furnas Pressure Switch - 95/125 psi Factory Set Pressure Switch
Brand: Marcuse & Son, Inc.
SKU: HUB-48e9a2
Price: 49.99 USD
Availability: OutOfStock

SKU:HUB-48e9a2

Hubbell Furnas Pressure Switch - Reliable 95/125 psi with NEMA 1 Compliance

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hubbell Furnas Pressure Switch provides precise pressure control with factory-set pressures of 95 psi when on and 125 psi when off, ensuring reliable performance in industrial applications. This NEMA 1 compliant switch features a non-metallic cover, visible contacts for easy inspection, and captive cover screws for added security. With an automatic unloader valve and pulsation dampener included, this switch offers ease of adjustment and enhanced durability. Trusted by institutions and government agencies, this switch meets rigorous industry standards, making it a reliable choice for critical operations.

Product Specifications

Factory Set Pressure Factory Set Pressure When Off

125 psi

Factory Set Pressure Factory Set Pressure When On

95 psi

Note 0

Maximum pressure on 69MB7Series is 150 psiThese units have the 4 port manifold

Power Rating 3 Phase Power Rating At 115 V

3 hp

Power Rating Single Phase Power Rating At 115 V

1-1/2 hp

Power Rating Single Phase Power Rating At 230 V

2 hp

Power Rating Voltage

115 V | 230 V

Specifications Brand

Hubbell

Specifications Female Pipe Thread Fpt Pipe Size

1/4 in

Specifications Industry Standards

NEMA 1

Specifications Maximum Pressure

150 psi

Specifications Mounting

Bottom

Specifications Number Of Port

Specifications Offon Lever

Yes

Specifications Phase

1 | 3

Specifications Unloaded Valve

Yes
