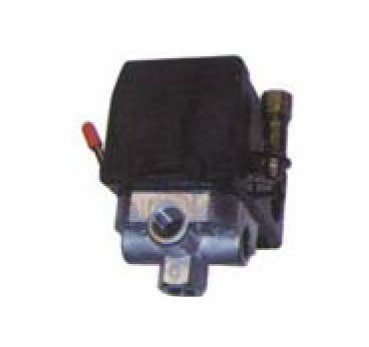

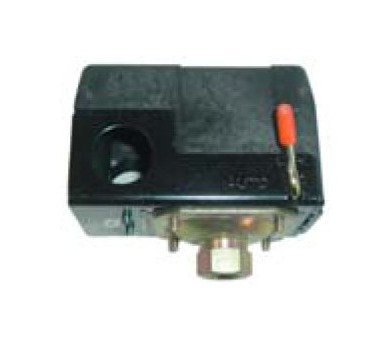

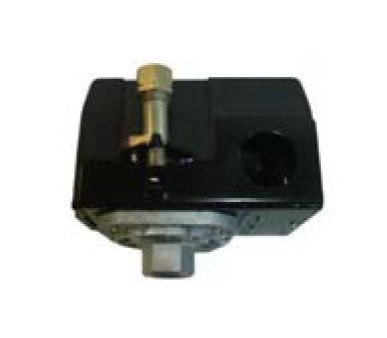

Hubbell Furnas Pressure Switch - 95/125 psi, NEMA 1, 1/4 in FPT

Name: Hubbell Furnas Pressure Switch - 95/125 psi, NEMA 1, 1/4 in FPT
Brand: Marcuse & Son, Inc.
SKU: HUB-35ec72
Price: 69.99 USD
Availability: OutOfStock

SKU:HUB-35ec72

Hubbell Furnas Pressure Switch for precise pressure control in industrial settings. CSA certified with 95/125 psi settings.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hubbell 95/125 psi Pressure Switch from the renowned Hubbell Furnas series offers reliable pressure control with its non-metallic cover, no drift pressure settings, and easy adjustment features. With factory set pressures of 95 psi when on and 125 psi when off, this switch ensures precise operation. It includes an automatic unloader valve, ample wiring space, and dual ground screws for secure installation. Certified to CSA standards, this switch is ideal for industrial applications requiring NEMA 1 compliance.

Product Specifications

Factory Set Pressure Factory Set Pressure When Off

125 psi

Factory Set Pressure Factory Set Pressure When On

95 psi

Note 0

Maximum pressure on 69MB7Series is 150 psiThese units have the 4 port manifold

Power Rating 3 Phase Power Rating At 115 V

3 hp

Power Rating Single Phase Power Rating At 115 V

1-1/2 hp

Power Rating Single Phase Power Rating At 230 V

2 hp

Power Rating Voltage

115 V | 230 V

Specifications Brand

Hubbell

Specifications Female Pipe Thread Fpt Pipe Size

1/4 in

Specifications Industry Standards

NEMA 1

Specifications Maximum Pressure

150 psi

Specifications Offon Lever

Specifications Phase

1 | 3

Specifications Unloaded Valve

Yes
