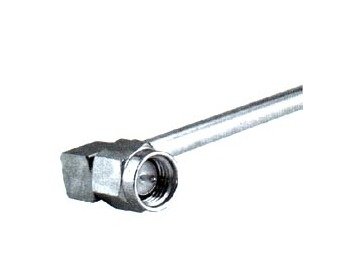

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

SKU:SMA-ebd189

Enhance your SMA connections with high-performance EZ 141 Right Angle Cable Plugs.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

$29.99

Quantity: 1

Claim Your Seller Account

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

HUBER+SUHNER EZ 141 Right Angle Cable Plugs (Male)

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your SMA cable connections with the HUBER+SUHNER EZ 141 Right Angle Cable Plugs. Designed for DC to 18 GHz frequency range, these plugs feature high RF-Leakage protection, strong contact resistance, and durable beryllium copper construction. With PTFE or PFA insulator material and SMA connector series, they ensure reliable performance in temperatures ranging from -85 to 329 degrees F. Suitable for Y5 and Y12 cable groups, these plugs come individually packaged with SUCOPLATE plating. Perfect for demanding applications requiring precision and durability.

Product Specifications

Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
