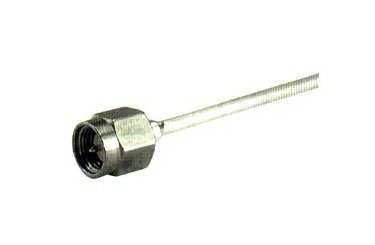

HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male)
HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male)
SKU:SMA-ab1700
High-performance HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male) for reliable connectivity in demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male)
$89.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with the HUBER+SUHNER EZ 86 SMA Straight Cable Plugs (Male). These plugs are meticulously engineered with specifications including a dielectric withstand voltage of up to 1000/1500 V rms, impedance of 50 ohms, and a frequency range from DC to 18 GHz. Crafted from beryllium copper and hardened materials, these plugs ensure reliable performance in temperatures ranging from -85 to 329 degrees F. With gold plating and compliant with industry standards, these connectors guarantee superior signal transmission and durability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
