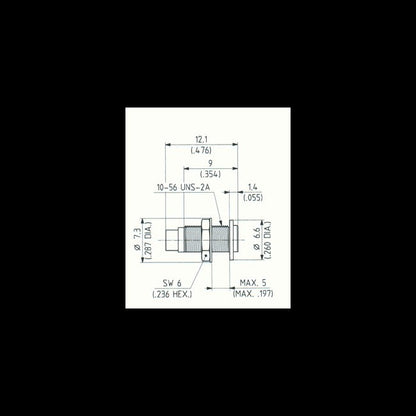

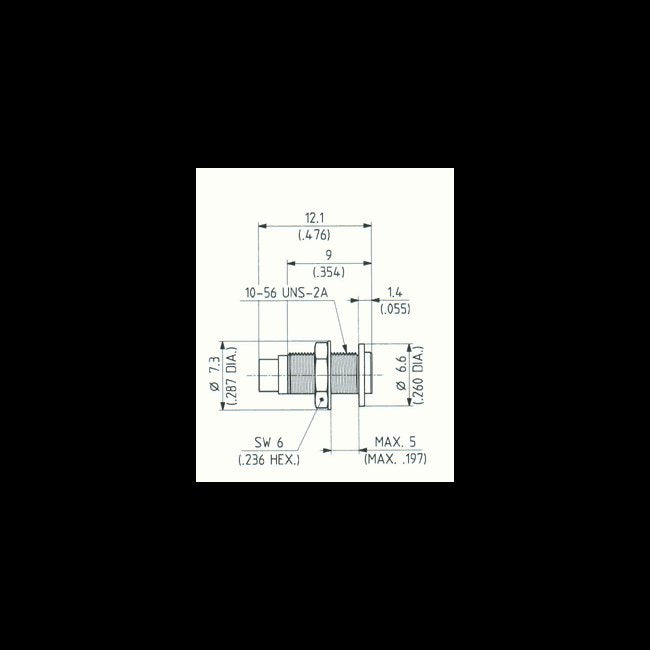

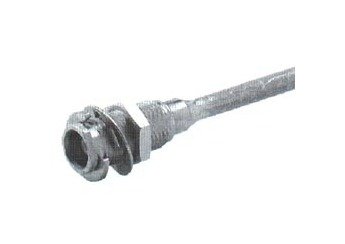

HUBER+SUHNER MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
HUBER+SUHNER MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
SKU:MCX-a99a6c
High-performance HUBER+SUHNER MCX 50 Ohm straight bulkhead cable jack for superior RF connectivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HUBER+SUHNER MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$29.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HUBER+SUHNER MCX 50 Ohm Straight Bulkhead Cable Jack provides unparalleled performance in RF connectivity. With an impedance of 50 Ohms and a wide frequency range from DC to 6 GHz, this connector ensures superior signal integrity. Featuring robust construction with brass body and gold plating, it offers exceptional durability with over 500 matings. The cable jack is designed for seamless installation in various applications, meeting stringent standards for impedance, voltage resistance, and contact materials.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
Semi-rigid, SUCOFORM and MULTIFLEX
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
